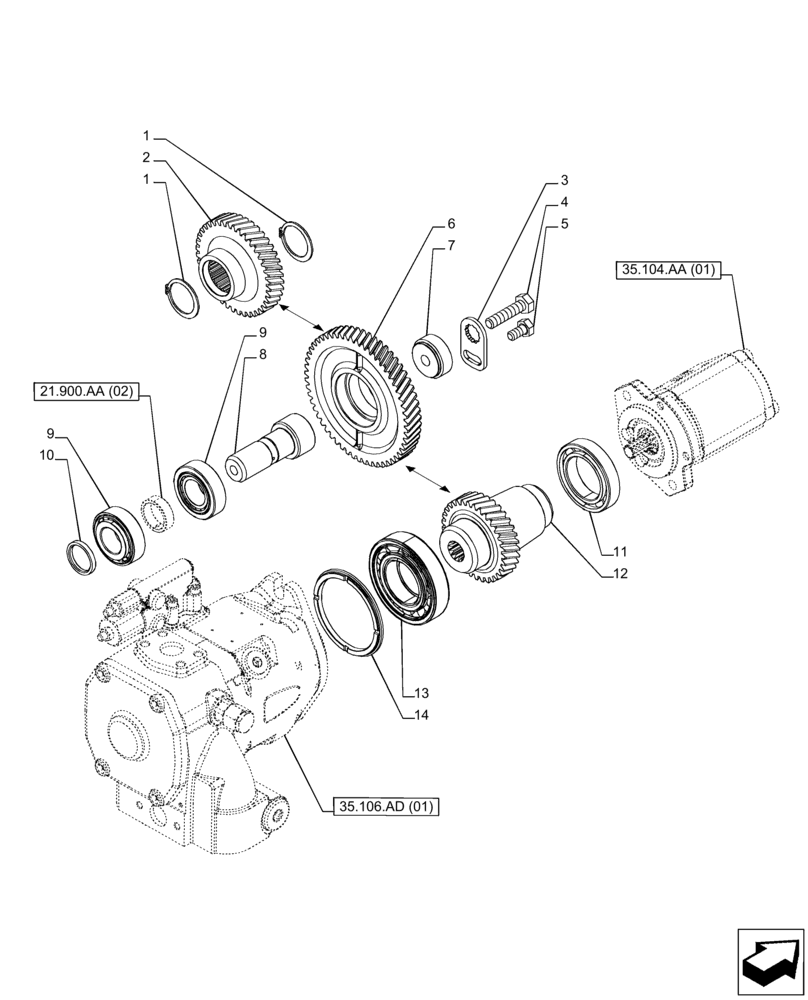

Запчасти Case IH PUMA 220 (21.900.AA[01]) - VAR - 391161, 758056 - HYDRAULIC PUMP, DRIVEN GEAR, POWERSHIFT (21) - TRANSMISSION

1

370006

SNAP RING,M40, Ext

2шт.

2

5186886

GEAR

Driven

1шт.

3

5196003

ADJUSTING PLATE

1шт.

4

16326621

BOLT,Hex Lock, M12 x 1.25 x 50.00mm, 8R, ZND

1шт.

5

16323321

BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND

1шт.

6

5195241

GEAR

Intermediate

1шт.

7

5196041

RING NUT

1шт.

8

5195243

SHAFT,30mm OD x 101mm L

Intermediate Gear

1шт.

9

26800120

TAPERED BEARING,30mm x 62mm x 21.25mm

2шт.

10

5196047

SPACER

1шт.

11

5199218

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

1шт.

12

5195239

GEAR

Driven Pump

1шт.

13

5186964

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

14

5186955

SPACER,84.5mm ID x 100.5mm OD x 6mm L

1шт.
