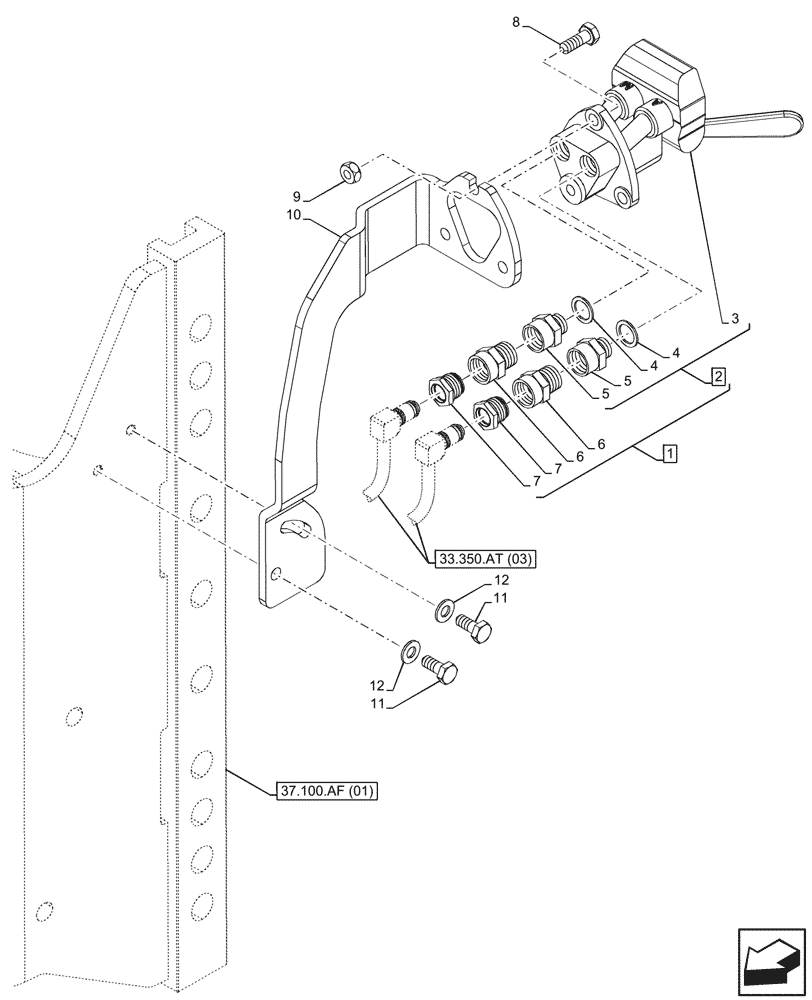

Запчасти Case IH PUMA 200 (33.350.AQ[01]) - VAR - 337484, 337487, 758041, 758042 - ANTILOCK BRAKING SYSTEM (ABS), QUICK COUPLER (33) - BRAKES & CONTROLS

1

87692946

PUSH-PULL COUPLING

ASSY, Incl 2 - 7

1шт.

2

87692947

PUSH-PULL COUPLING

ASSY, Incl 3 - 5

1шт.

3

87693018

COUPLING

Coupling, Incl in 2

1шт.

4

87692948

WASHER,18.0mm ID x 25mm OD x 1.5mm Thk, Aluminum

2шт.

5

87692949

FITTING,M22 x 1.5 x M18 x 1.5

2шт.

6

87679177

ADAPTER

2шт.

7

82034157

ADAPTER

2шт.

8

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

10

47620067

BRACKET

1шт.

11

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.
