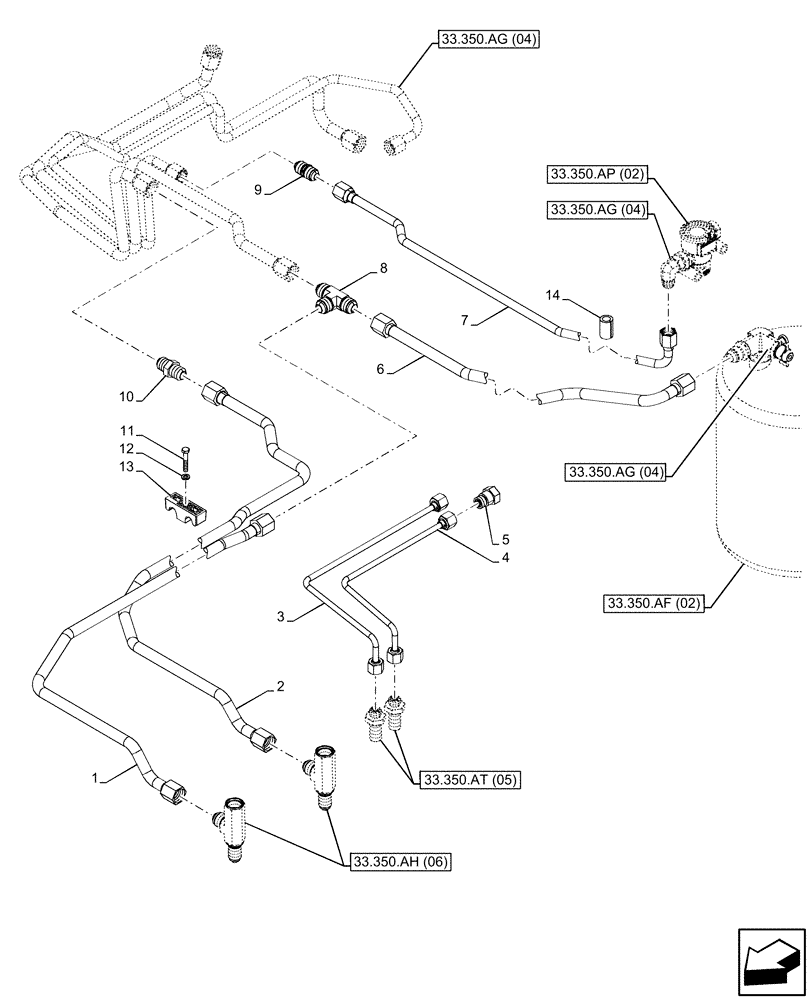

Запчасти Case IH PUMA 200 (33.350.AH[08]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), LINE (33) - BRAKES & CONTROLS

1

47567788

PIPE

from EBM to Reservoir

1шт.

2

47557048

PIPE

from EBM to Pressure Reducer

1шт.

3

47551785

PIPE

from EBM to RH Brake

1шт.

4

47551783

PIPE

from EBM to LH Brake

1шт.

5

87582905

ORIFICE

1шт.

6

47626669

PIPE

from EBM to LH Reservoir

1шт.

7

47557139

PIPE

Servo Control Valve

1шт.

8

16985

TEE,7/8"-14, 37 Degree

1шт.

9

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

11

86579344

BOLT,Hex, M6 x 35mm, Cl 10.9

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

87571442

BRACKET

1шт.

14

84530476

SPACER

1шт.
