Запчасти Case IH PUMA 200 (33.350.AG[03]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, LINE (33) - BRAKES & CONTROLS

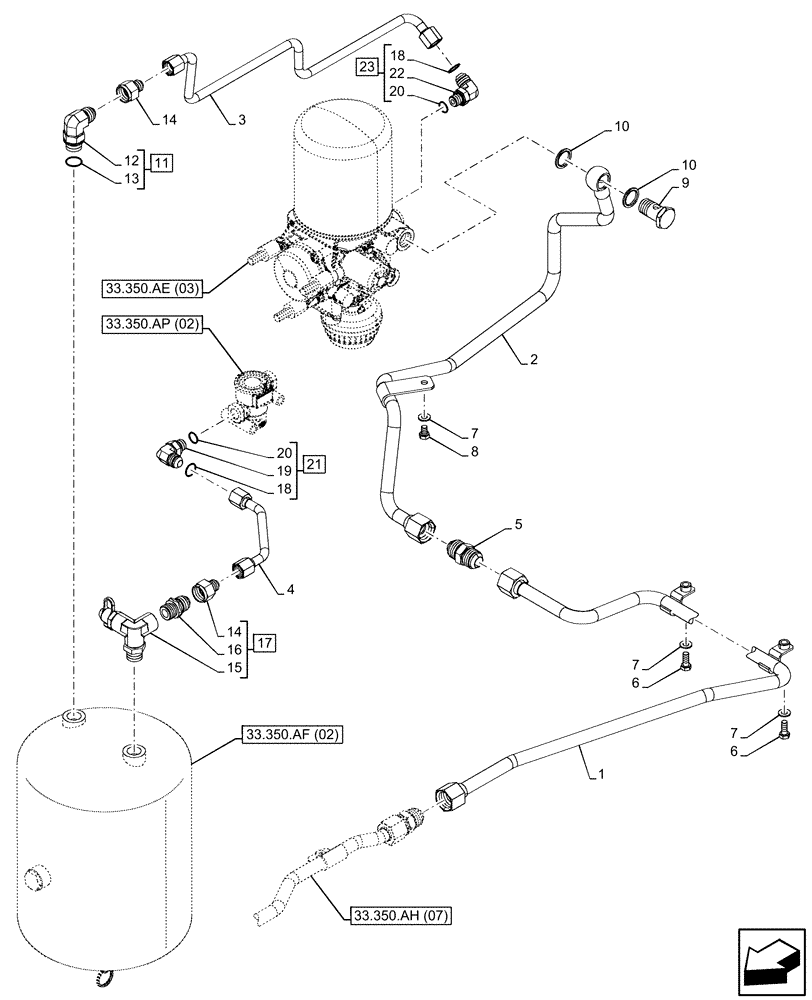

Схема запчастей Case IH PUMA 200 - (33.350.AG[03]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), AIR RESERVOIR, LINE (33) - BRAKES & CONTROLS
33.350.af (02)
9
12
13
1
4
10
7
16
19
5
20
7
14
6
23
10
2
21
14
8
17
15
22
20
11
6
18
18
3
7
33.350.ae (03)
33.350.ah (07)
33.350.ap (02)

Артикул

Название

Примечание

Количество

1

84584521

TUBE

Air from Compressor

1шт.

2

84413999

PIPE

1шт.

3

84482700

BRAKE LINE

From APU to Reservoir

1шт.

4

47632422

PIPE

from Limiting Valve to Reservoir

1шт.

5

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

8

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

9

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

10

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

11

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

14

87029966

REDUCER,7/8" - 14 JIC x 3/4" - 16 JIC

2шт.

15

47618996

HYD CONNECTOR,M22 x 1.5

1шт.

16

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

1шт.

17

47673996

90 ELBOW

ASSY, Incl 14 (Qty 1), 15, 16

1шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 21

1шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

21

84553346

HYD CONNECTOR,M16 x 1.5

ASSY, Incl 18 (Qty 1), 19, 20 (Qty 1)

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 23

1шт.

23

47460751

FITTING,M16 x 1.5 x 36.5mm

ASSY, Incl 18 (Qty 1), 20 (Qty 1), 22

1шт.

Выбрано товаров: 23
