Запчасти Case IH PUMA 200 (33.204.AD[03]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, BRAKES (33) - BRAKES & CONTROLS

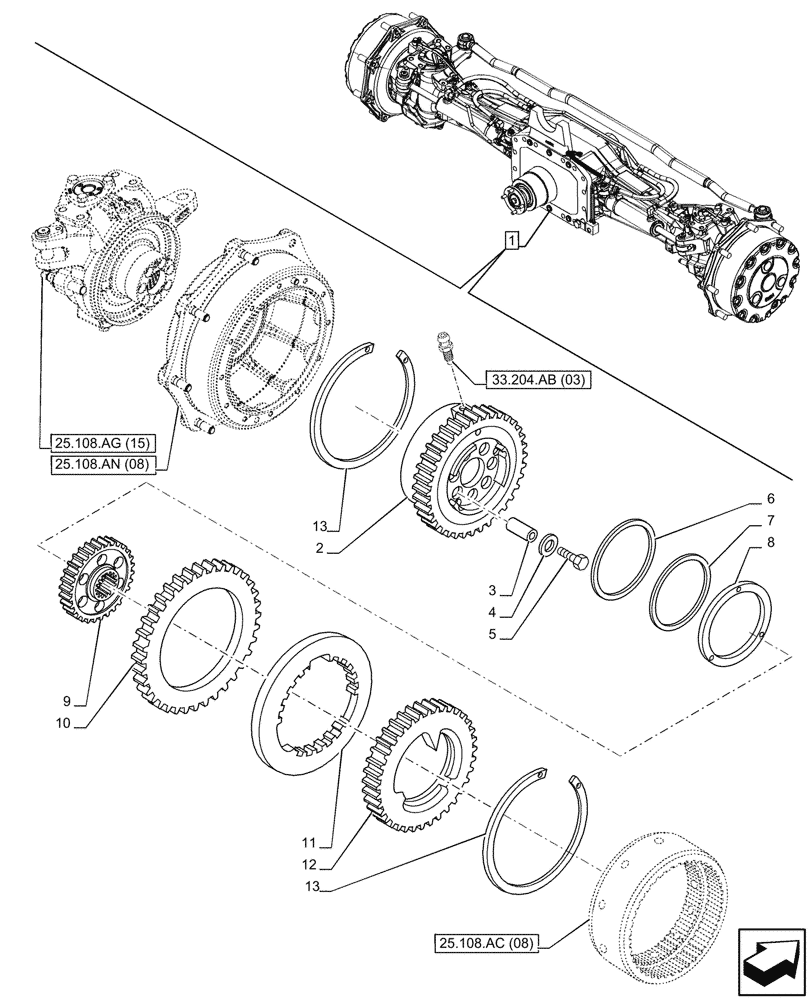

Схема запчастей Case IH PUMA 200 - (33.204.AD[03]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, BRAKES (33) - BRAKES & CONTROLS
11
12
3
7
1
2
6
4
8
13
25.108.ag (15)
5
10
25.108.ac (08)
9
33.204.ab (03)
25.108.an (08)
13

Артикул

Название

Примечание

Количество

1

84381243

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AB (03), 25.108.AC (08), 25.108.AG (15), 25.108.AG (16), 25.108.AN (08), 33.204.AB (03), 33.204.AG (05), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16), 55.047.AA (09)

1шт.

2

5181994

HOUSING

1шт.

3

5179560

BUSHING,16.5mm ID x 27mm OD x 27.8mm L

6шт.

4

11200274

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

6шт.

5

16334430

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

6шт.

6

5181566

SEAL,198.6mm ID x 205.4mm OD x 3.4mm Thk

1шт.

7

5178850

PISTON RING,Square, 3.4mm Thk x 229.6mm ID, 80 Duro

1шт.

8

5181567

RING

1шт.

9

5182010

HUB,14T Internal / 60T External

1шт.

10

5178813

BRAKE DISC,191mm ID x 266.5mm OD x 4.95mm Thk

1шт.

11

5178903

BRAKE DISC,175mm ID x 247mm OD x 4.5mm Thk

1шт.

12

5181929

BRAKE DISC,182mm ID x 266.5mm OD x 18mm Thk

1шт.

13

5178857

CIRCLIP

2шт.

Выбрано товаров: 14
