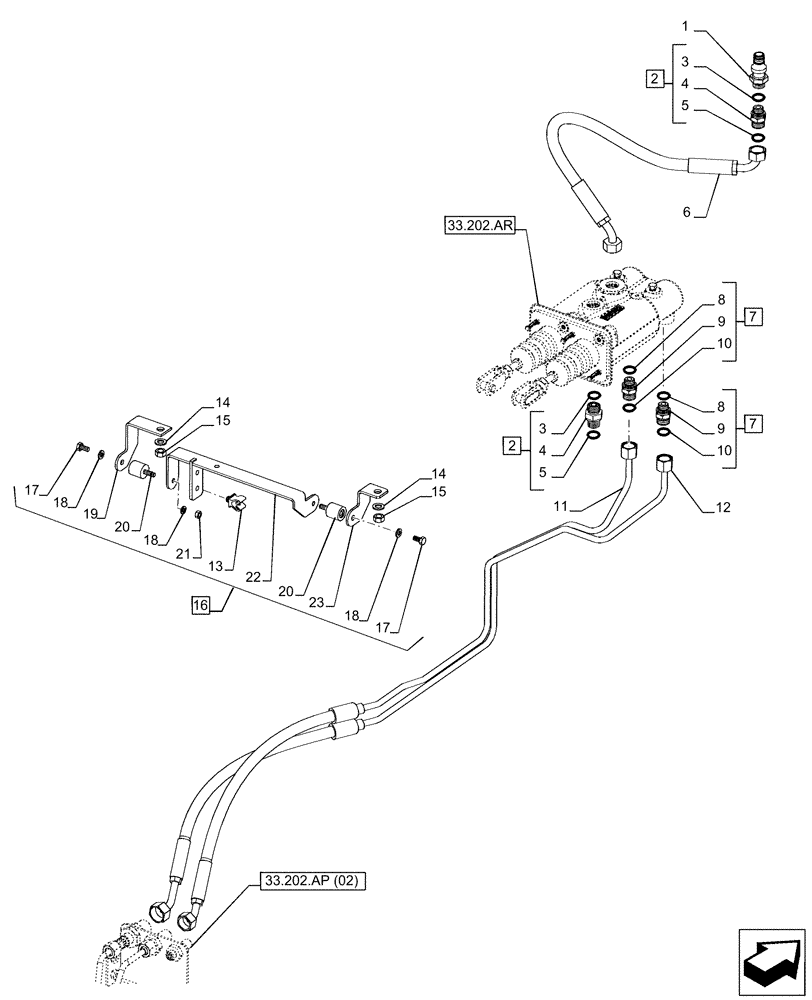

Запчасти Case IH PUMA 200 (33.202.BO[01]) - VAR - 391347, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - BRAKE LINE (33) - BRAKES & CONTROLS

1

82029114

FITTING,M16 x 1.5 x 51mm L

1шт.

2

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 - 5

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

6

47488078

HOSE

1шт.

7

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 8 - 10

2шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

10

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

2шт.

11

47729948

PIPE

LH, Brake

1шт.

12

47729942

PIPE

RH, Brake

1шт.

13

87313304

CLIP

2шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

43362

NUT,M8 x 1.25, Cl 10

2шт.

16

47591122

BRACKET

ASSY, Incl 17 - 23

1шт.

17

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

18

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 16

1шт.

20

84485006

SHOCK ABSORBER

2шт.

21

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

22

NSS

NOT SOLD SEPARAT

Bracket, Incl in 16

1шт.

23

NSS

NOT SOLD SEPARAT

Bracket, Incl in 16

1шт.
