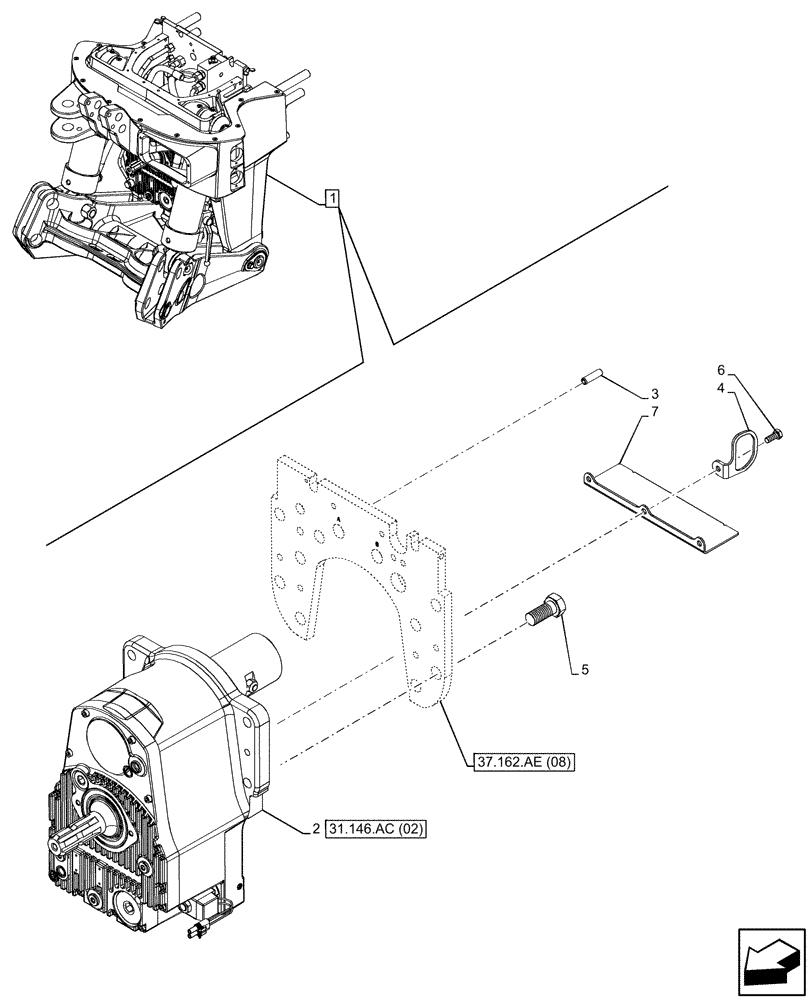

Запчасти Case IH PUMA 200 (31.146.AC[01]) - VAR - 758093, 758247 - FRONT, 3 POINT HITCH, FRONT PTO (31) - IMPLEMENT POWER TAKE OFF

1

84474238

HITCH

ASSY, Incl 2 - 7

1шт.

See also Figure 31.142.AF (02), 35.160.AF (04), 35.160.AK (02), 35.162.AB (04), 35.162.AG (04), 37.162.AE (07), 37.162.AE (08), 37.166.AD (02), 55.160.AP (02)

1шт.

2

84481589

FRONT PTO ASSY

ASSY

1шт.

3

84481628

DOWEL

10 x 35

4шт.

4

47375067

HOLDER

1шт.

5

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

4шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

7

84481609

COVER

1шт.
