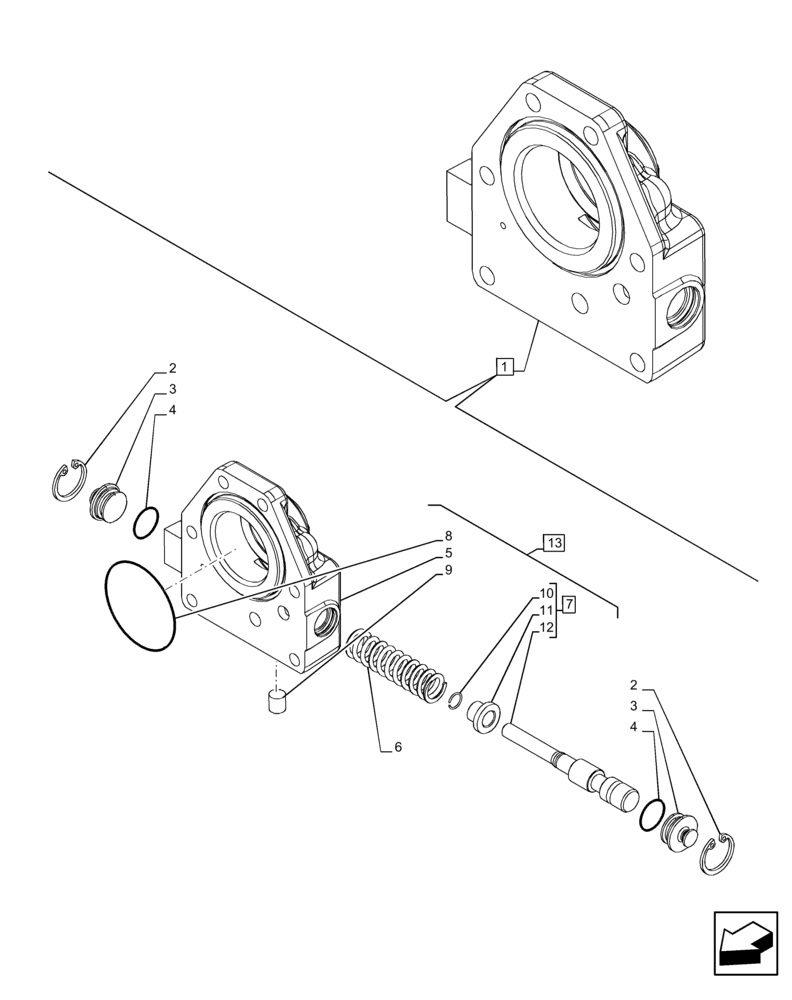

Запчасти Case IH PUMA 200 (31.119.AK[02]) - VAR - 758030 - PTO 540/540E/1000/1000E RPM, MANIFOLD, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

1

84296184

MANIFOLD

ASSY, Incl 2 - 13

1шт.

2

47127897

SNAP RING,M21.5, Ext

2шт.

3

47128597

PLUG,6mm ID x 19mm OD x 13mm L

2шт.

4

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

5

84240136

SUPPORT

1шт.

6

84281722

SPRING,Compression, 15mm OD x 80mm L

1шт.

7

84271075

VALVE

ASSY, incl 10 - 12

1шт.

8

14460880

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

1шт.

9

14536590

PLUG,10.00mm Dia x 19.80mm L

2шт.

10

13397370

SNAP RING,M8, Int

1шт.

11

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

1шт.

12

47128521

VALVE

1шт.

13

84296183

MANIFOLD

ASSY, Incl 5, 7, 9 - 12

1шт.
