Запчасти Case IH PUMA 200 (31.119.AH[08]) - VAR - 338034, 338035, 338967, 338968, 391173, 758100, 758101, 758102, 758103, 758113, 758651, 758652, 758653, 758654, 758655, 758656, 758657, 758658 - PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE OFF

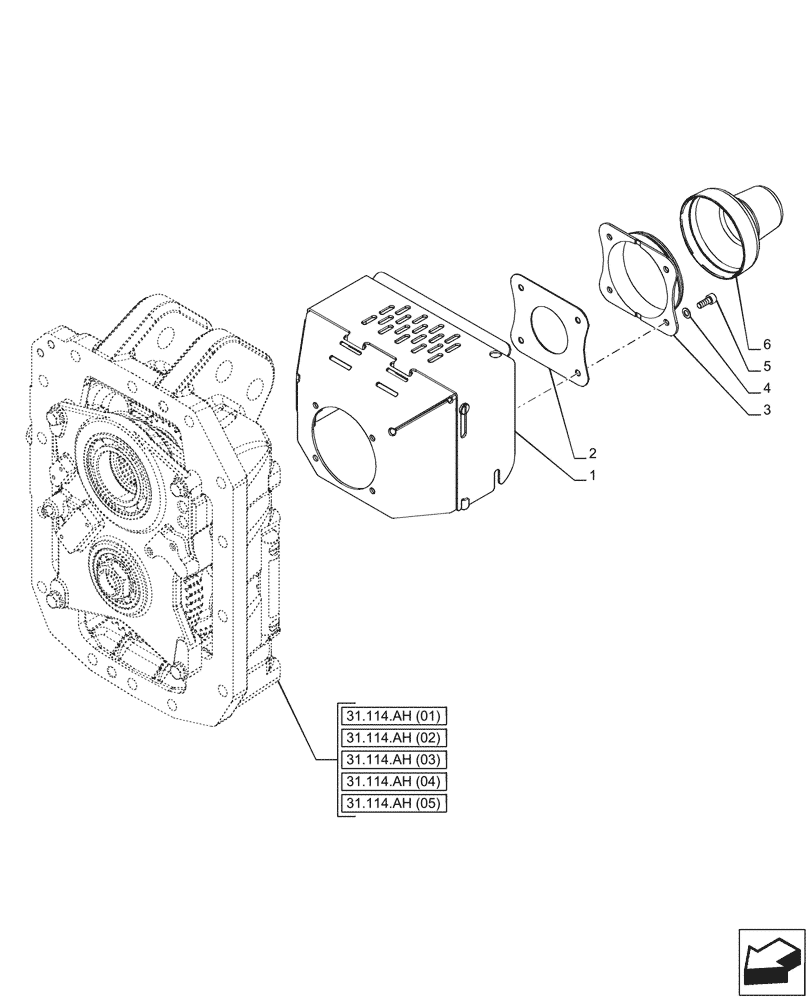

Схема запчастей Case IH PUMA 200 - (31.119.AH[08]) - VAR - 338034, 338035, 338967, 338968, 391173, 758100, 758101, 758102, 758103, 758113, 758651, 758652, 758653, 758654, 758655, 758656, 758657, 758658 - PTO, HOUSING & COVERS (31) - IMPLEMENT POWER TAKE O
31.114.ah (01)
2
6
4
1
3
5
31.114.ah (03)
31.114.ah (04)
31.114.ah (02)
31.114.ah (05)

Артикул

Название

Примечание

Количество

1

84568331

COVER

1шт.

2

47131825

GUARD

1шт.

3

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

4

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

5

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

47125899

COVER,109mm L

1шт.

Выбрано товаров: 6
