Запчасти Case IH PUMA 200 (31.114.AH[05]) - VAR - 338178, 338181, 338182, 338183, 338184, 391141, 391145, 758025, 758028, 758029, 758031, 758032 - PTO, 2-SPEED (540/1000, 540E/1000, 1000/1000E), HOUSING, MOUNTING (31) - IMPLEMENT POWER TAKE OFF

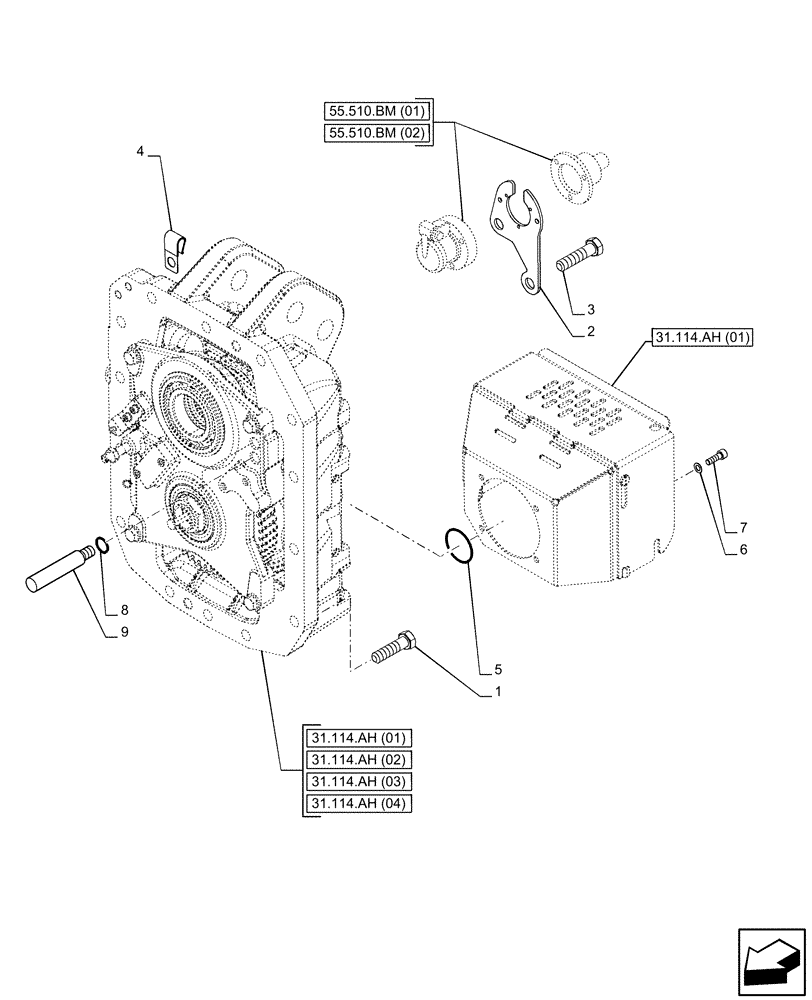

Схема запчастей Case IH PUMA 200 - (31.114.AH[05]) - VAR - 338178, 338181, 338182, 338183, 338184, 391141, 391145, 758025, 758028, 758029, 758031, 758032 - PTO, 2-SPEED (540/1000, 540E/1000, 1000/1000E), HOUSING, MOUNTING (31) - IMPLEMENT POWER TAKE OFF
31.114.ah (01)
4
9
1
8
7
2
3
6
5
31.114.ah (02)
31.114.ah (04)
55.510.bm (01)
31.114.ah (03)
55.510.bm (02)
31.114.ah (01)

Артикул

Название

Примечание

Количество

1

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

12шт.

2

87692482

BRACKET

1шт.

3

15981224

BOLT,Hex, M16 x 1.5 x 65mm, Cl 8.8

2шт.

4

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

5

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

6

10569374

LOCK WASHER,M8

4шт.

7

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

8

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

9

84226973

HYD TUBE,10 mm ID x 20 mm OD x 80.5 mm L

2шт.

Выбрано товаров: 9
