Запчасти Case IH PUMA 200 (31.104.AR[06]) - VAR -332337, 332339, 337429, 337431, 391137, 758018, 758020, 759052 - PTO, CONTROL VALVE, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

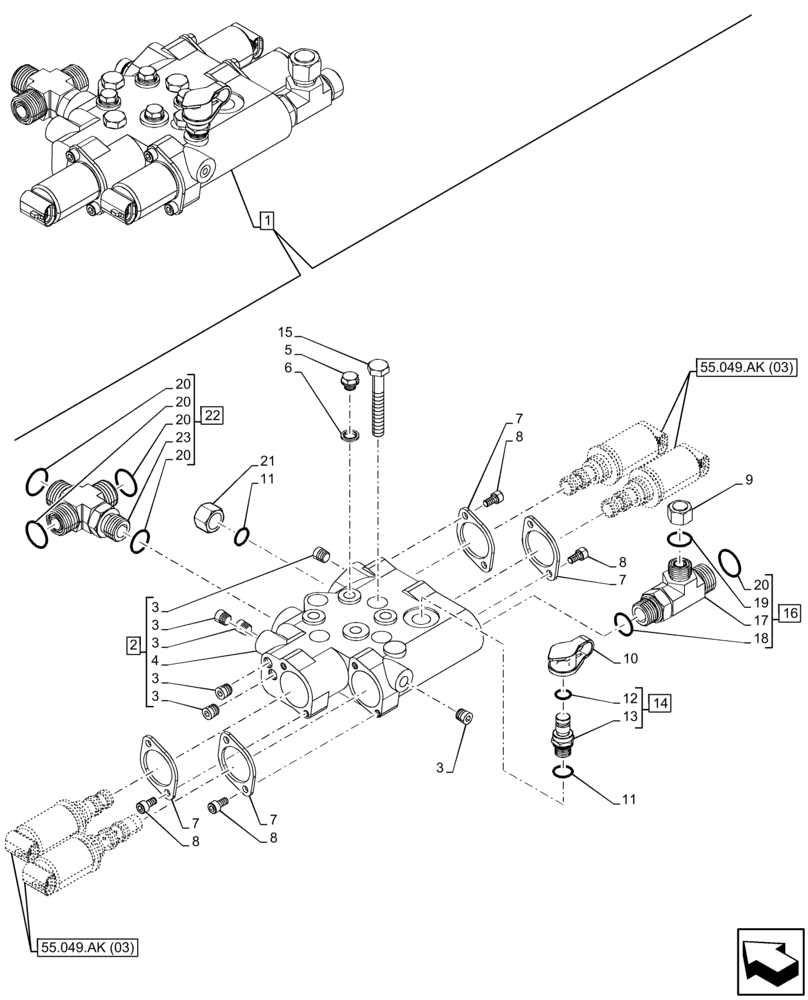

Схема запчастей Case IH PUMA 200 - (31.104.AR[06]) - VAR -332337, 332339, 337429, 337431, 391137, 758018, 758020, 759052 - PTO, CONTROL VALVE, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
55.049.ak (03)
4
3
7
8
11
3
6
9
8
21
2
22
7
3
8
15
18
13
20
20
8
12
20
20
3
19
5
23
1
3
17
14
10
7
16
20
11
55.049.ak (03)
3
7

Артикул

Название

Примечание

Количество

1

87525222

DISTRIBUTOR

ASSY, Incl 2 - 23

1шт.

See also Figure 55.048.AK 03

1шт.

2

87523105

VALVE BODY

ASSY, Incl 3, 4

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

6шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

5

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

6

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

7

5194826

BRACKET

4шт.

8

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

9

47123020

PLUG,Hex

1шт.

10

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

11

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

12

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

NSS

NOT SOLD SEPARAT

Coupling, Incl in 14

1шт.

14

5185423

COUPLING

ASSY, Incl 12, 13

1шт.

15

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

16

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

ASSY, Incl 17, 18 (Qty 1), 19, 20 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

Tee, Incl in 16

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

19

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

20

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

21

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

22

5187063

HYD CONNECTOR

ASSY, Incl 18 (Qty 1), 20 (Qty 3), 23

1шт.

23

NSS

NOT SOLD SEPARAT

Cross, Incl in 22

1шт.

Выбрано товаров: 24
