(90.150.BG[11]) - VAR - 338305, 338309, 338313, 338315 - CAB ROOF, W/ HIGH VISIBILITY PANEL, W/ AUTOGUIDANCE

Запчасти Case IH PUMA 200 (90.150.BG[11]) - VAR - 338305, 338309, 338313, 338315 - CAB ROOF, W/ HIGH VISIBILITY PANEL, W/ AUTOGUIDANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS

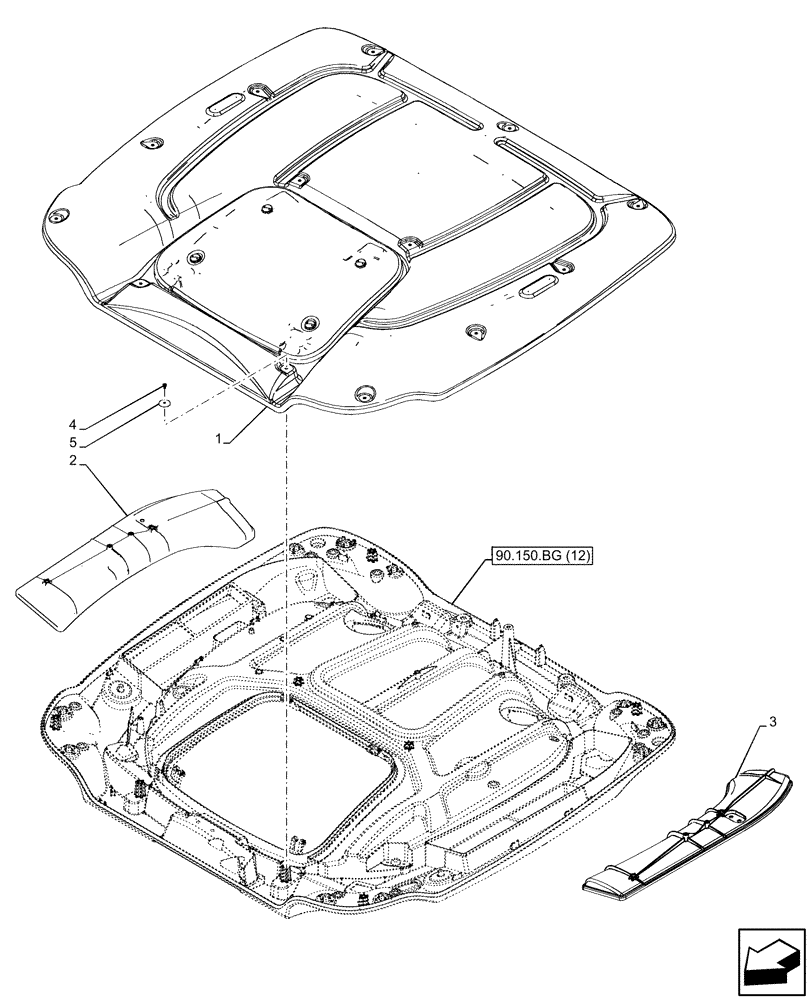

Схема запчастей Case IH PUMA 200 - (90.150.BG[11]) - VAR - 338305, 338309, 338313, 338315 - CAB ROOF, W/ HIGH VISIBILITY PANEL, W/ AUTOGUIDANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.bg (12)
3
1
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613457

ROOF

with High Visibility

1шт.

2

47619354

COVER

RH

1шт.

3

47619357

COVER

LH

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

13шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

13шт.

Выбрано товаров: 5
