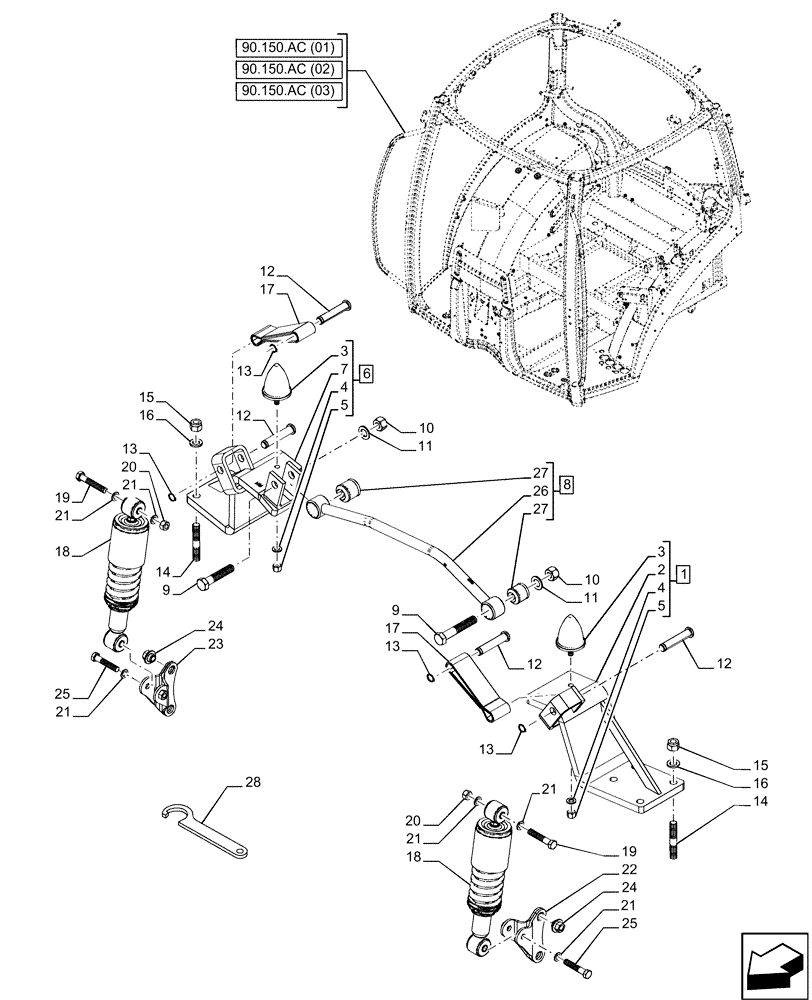

Запчасти Case IH PUMA 200 (90.150.AJ[01]) - VAR - 391183, 391184, 758159 - CAB, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87399038

SUPPORT

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Rear Support, Incl in 1

1шт.

3

82025784

RUBBER PAD,M12 x 1.75

2шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

5

12577511

NUT,M12 x 1.75, Cl 8

2шт.

6

87399039

SUPPORT

ASSY, Incl 3 - 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Rear Support, Incl in 6

1шт.

8

87591850

TIE-ROD,2 x 38.9mm ID

1шт.

9

11126121

BOLT,Hex, M20 x 120, 8.8

2шт.

10

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

2шт.

11

14497101

WASHER,M20 x 37 x 3

2шт.

12

87543582

PIN,20mm OD x 104mm L

4шт.

13

11066871

CIRCLIP,M20

4шт.

14

47543628

STUD

8шт.

15

12575021

NUT,M18 x 1.5, Cl 10

8шт.

16

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

17

87357896

STRAP,165mm L

2шт.

18

84605258

SHOCK ABSORBER

2шт.

19

11117021

BOLT,Hex, M14 x 90, 8.8

2шт.

20

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

21

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

6шт.

22

84161190

SUPPORT

Left

1шт.

23

84161249

SUPPORT

Right

1шт.

24

84134918

FLANGE NUT,Hex, M16 x 1.5

4шт.

25

86518210

BOLT,Hex, M14 x 75mm, Cl 8.8

2шт.

26

NSS

NOT SOLD SEPARAT

1шт.

27

82039256

BUSHING,20mm ID x 50mm OD x 49.95mm L

2шт.

28

82034842

SPECIAL WRENCH

1шт.
