(90.150.AE[01]) - VAR - 391183 - CAB, FRONT, MOUNT

Запчасти Case IH PUMA 200 (90.150.AE[01]) - VAR - 391183 - CAB, FRONT, MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

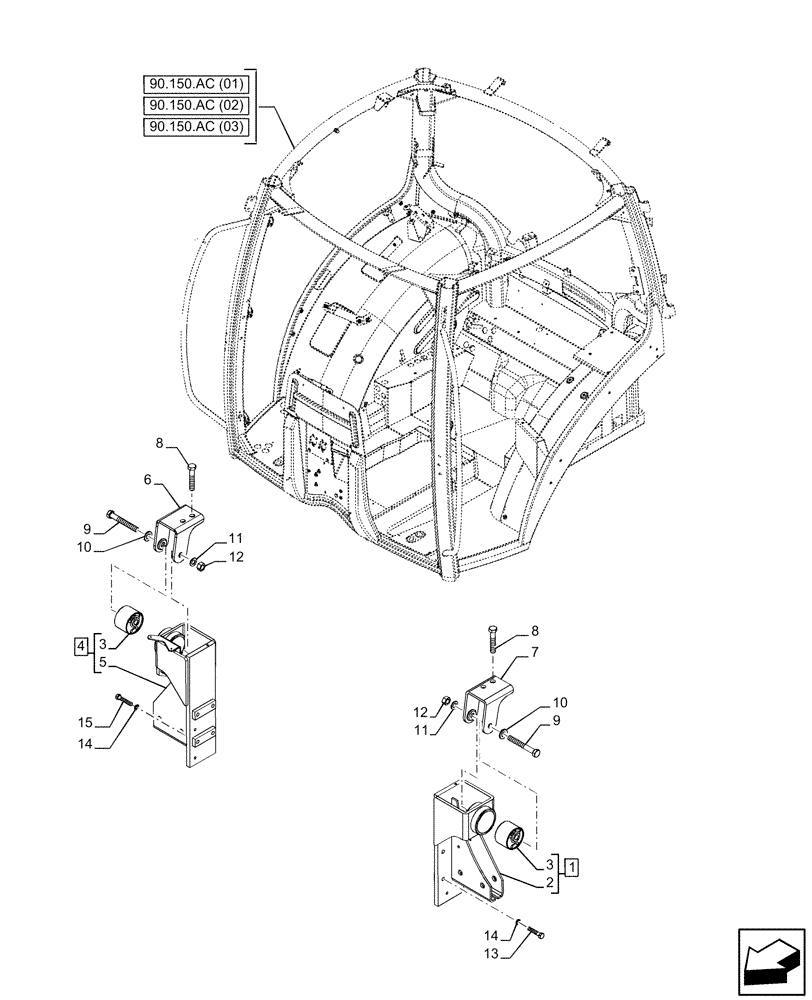

Схема запчастей Case IH PUMA 200 - (90.150.AE[01]) - VAR - 391183 - CAB, FRONT, MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (02)
5
9
12
4
3
10
8
7
10
11
8
12
15
9
6
14
3
13
14
1
2
11
90.150.ac (01)
90.150.ac (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84353516

SUPPORT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Front, Left, Incl in 1

1шт.

3

87396965

INSULATOR,100mm OD x 85.3mm L

2шт.

4

84353511

SUPPORT

ASSY, Incl 3, 5

1шт.

5

NSS

NOT SOLD SEPARAT

Support, Front, Right, Incl in 4

1шт.

6

84252843

YOKE

1шт.

7

84252853

YOKE

1шт.

8

11125921

BOLT,Hex, M20 x 110, 8.8

4шт.

9

384197

BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8

2шт.

10

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

11

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

12

9706694

NUT,Hex, M20, Cl 8

2шт.

13

11227021

BOLT,Hex, M14 x 1.5 x 65, 8.8

8шт.

14

47630557

WASHER,Nordlock NL14; 15.2mm ID x 23mm OD x 3.4mm Thk

8шт.
