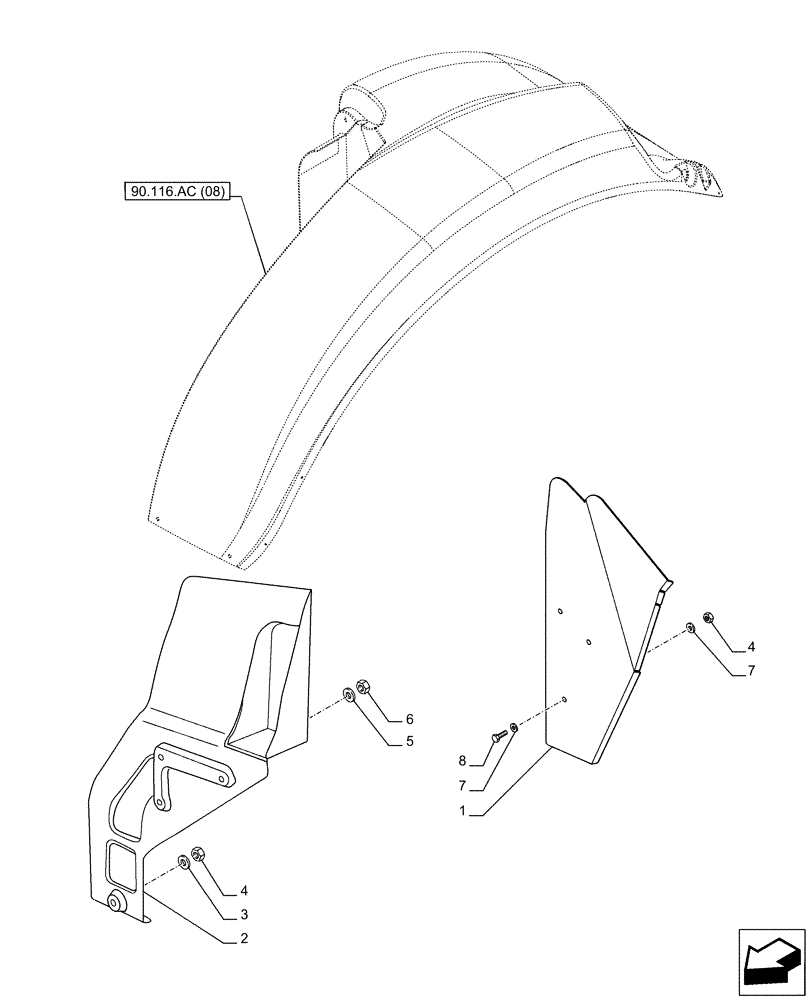

Запчасти Case IH PUMA 200 (90.116.AC[09]) - VAR - 758181, 758182, 758183 - WIDE REAR FENDERS, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47637827

GUARD

LH

1шт.

2

84364605

GUARD

RH

1шт.

3

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

12574211

NUT,M6 x 1, Cl 8

4шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

6

14047317

NUT,M8 x 1.25

3шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.
