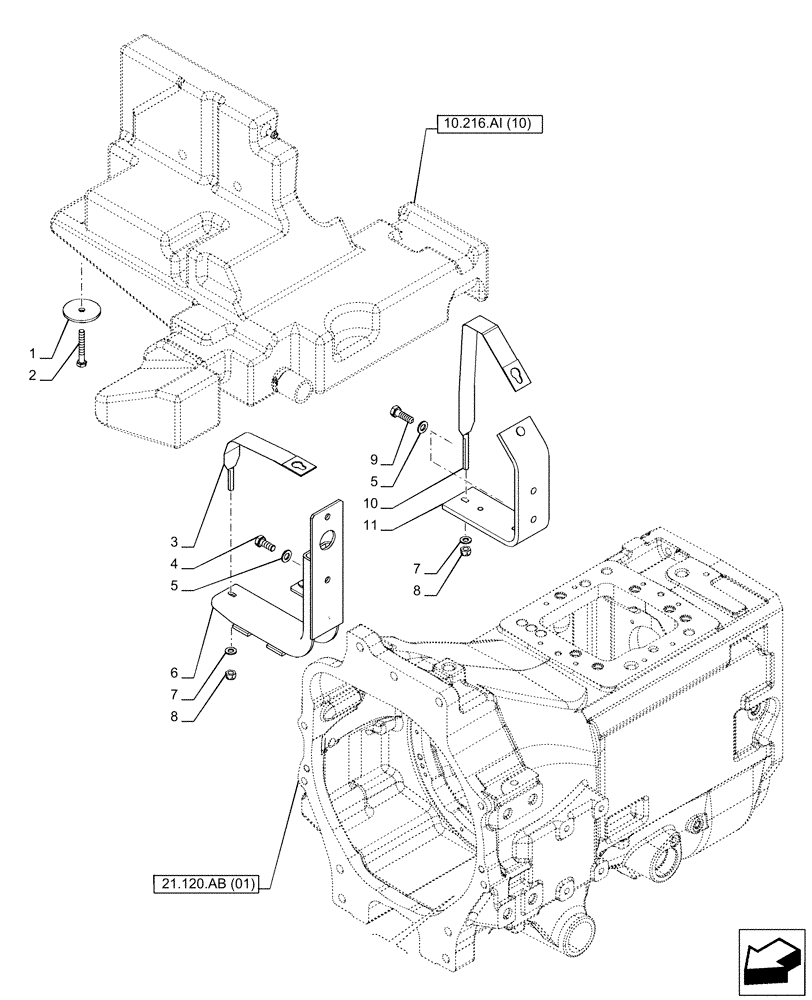

Запчасти Case IH PUMA 200 (10.216.AI[12]) - VAR - 391131, 758001 - FUEL TANK, SUPPORT (RH) (10) - ENGINE

1

84596792

WASHER,11.0mm ID x 70mm OD x 4.5mm Thk

11 x 70 x 4.5

1шт.

2

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.

3

84319310

STRAP,253mm L

1шт.

4

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

5

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

6

84331082

HOLDER

1шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

9

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

10

84317148

STRAP

1шт.

11

84306176

BRACKET

1шт.
