Запчасти Case IH PUMA 200 (55.512.CS[18]) - ELECTRONIC CONTROL UNIT, ARMREST (55) - ELECTRICAL SYSTEMS

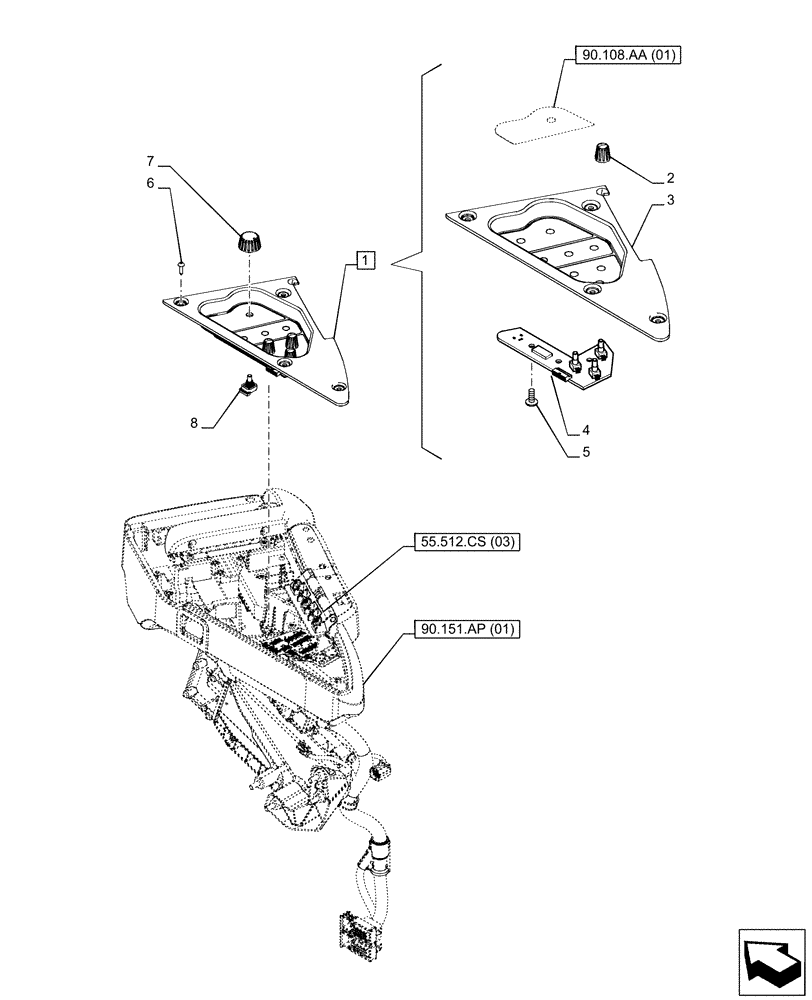

Схема запчастей Case IH PUMA 200 - (55.512.CS[18]) - ELECTRONIC CONTROL UNIT, ARMREST (55) - ELECTRICAL SYSTEMS
90.108.aa (01)
8
7
3
2
4
5
1
6
55.512.cs (03)
90.151.ap (01)

Артикул

Название

Примечание

Количество

1

84168655

ELECTRIC PANEL

EDC Rear, less Slip, with EHR, ASSY, Incl 2 - 5

1шт.

2

82012988

KNOB

Small

4шт.

3

87486096

PANEL

EDC Controls

1шт.

4

84206632

PRINTED CIRCUIT BOAR

Printed Circuit

1шт.

5

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

6

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

4шт.

7

87755846

POTENTIOMETER,5V, 30mA, 150mW

EHR Flow Control

1шт.

8

87454709

KNOB

SWCD Encoder

1шт.

Выбрано товаров: 8
