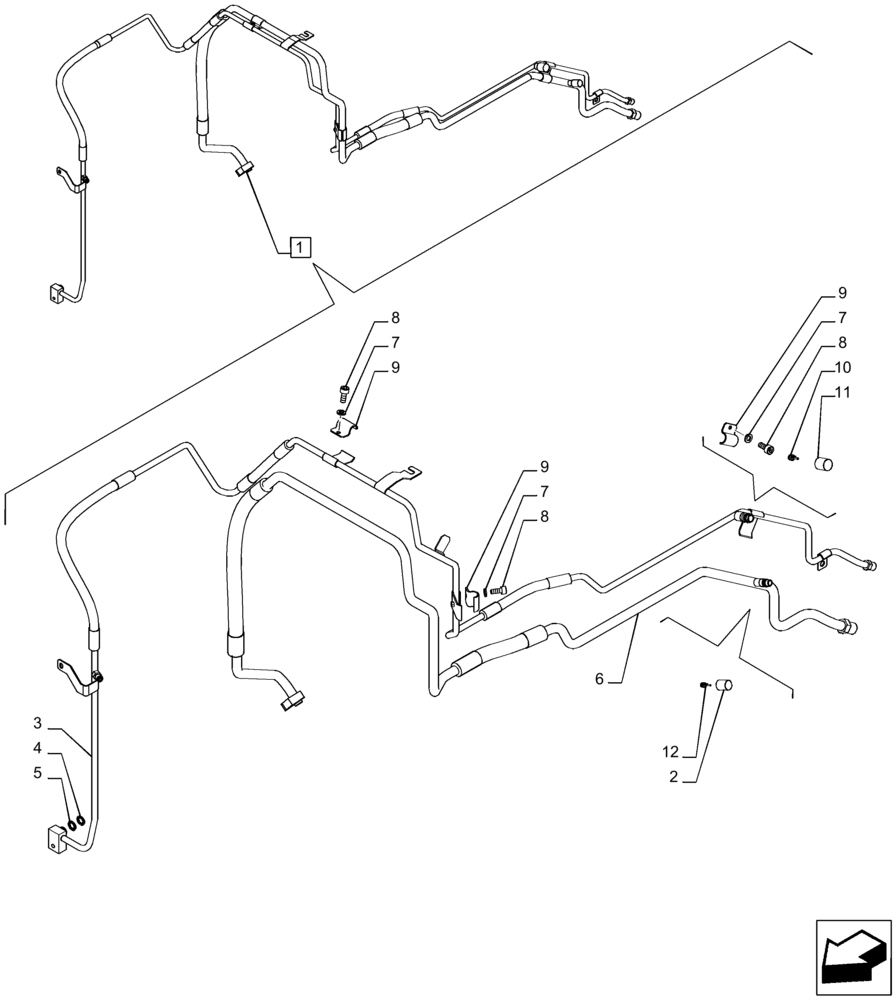

Запчасти Case IH PUMA 200 (50.200.AB[03]) - VAR - 391130, 758000 - AIR CONDITIONING, LINES, COMPONENTS (50) - CAB CLIMATE CONTROL

1

47506784

TUBE

ASSY, Incl 2 - 12

1шт.

2

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

High Flow Low Side Port

1шт.

3

NSS

NOT SOLD SEPARAT

Dryer to Cab, Incl in 1

1шт.

4

14450683

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

10319183

O-RING,13.1mm ID x 1.6mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Compressor to Cab, Incl in 1

1шт.

7

86509828

LOCK WASHER,M5

3шт.

8

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

9

87314368

BRACKET,16mm ID, 6mm Bolt Hole, J Type

3шт.

10

414082A1

CORE

High Flow High Side Port

1шт.

11

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

High Flow High Side Port

1шт.

12

414083A1

VALVE

High Flow Low Side Port

1шт.
