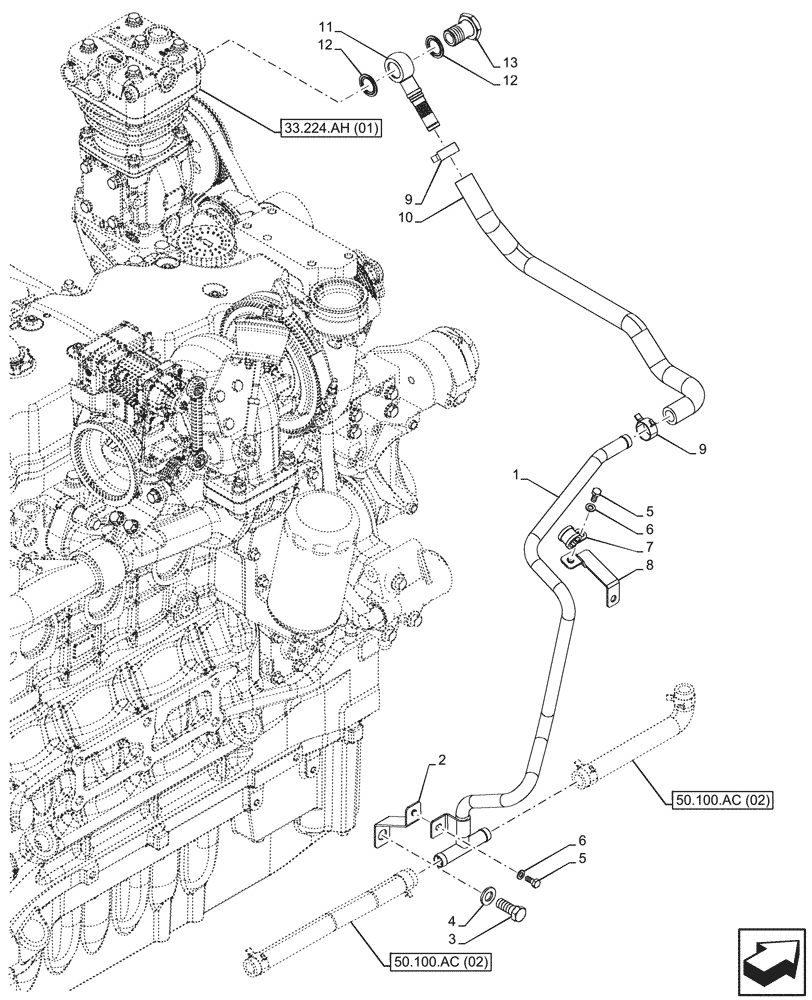

Запчасти Case IH PUMA 200 (50.100.AC[03]) - VAR - 337481, 337482, 337484, 337487, 337488, 337491 - HEATER, LINE (50) - CAB CLIMATE CONTROL

1

47515780

TUBE

1шт.

2

47519533

BRACKET

1шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

4

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

5

10902280

BOLT,Hex, M6 x 16mm

2шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

7

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

1шт.

8

47516210

BRACKET

1шт.

9

82019905

HOSE CLAMP,22 - 26mm X 12mm

2шт.

10

47515660

LARGE HOSE

From Pump to engine

1шт.

11

47515670

BANJO FITTING

1шт.

12

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

13

84474995

BANJO BOLT,M22 x 1.5

1шт.
