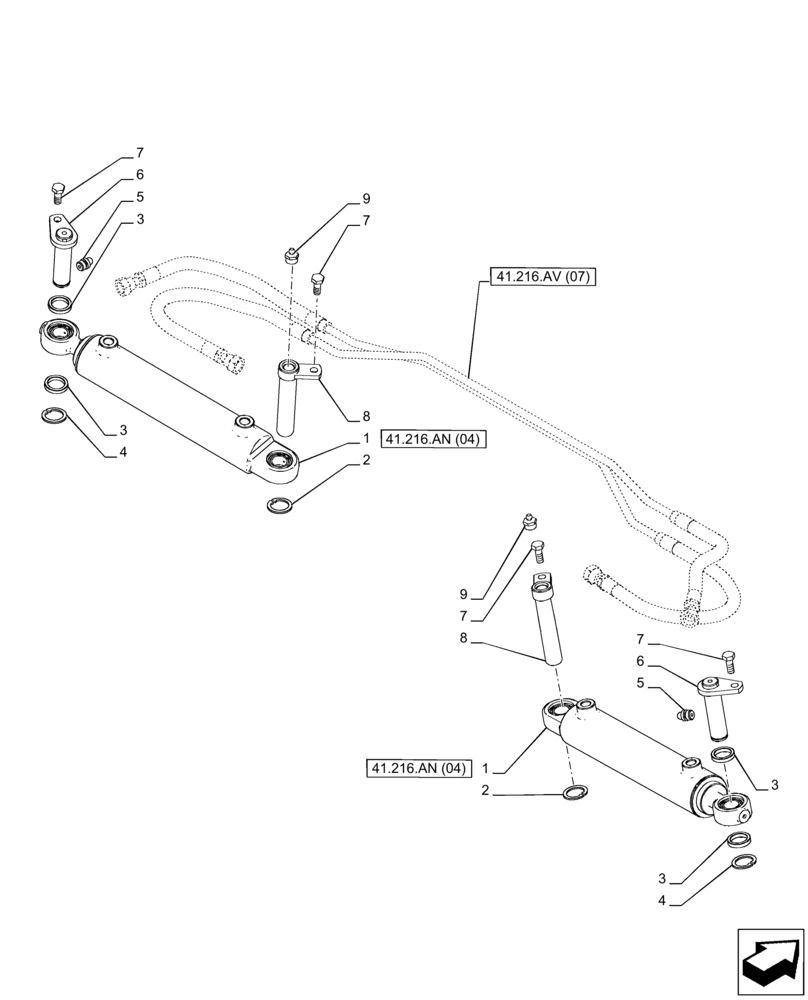

Запчасти Case IH PUMA 200 (41.216.AN[02]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, STEERING CYLINDER (41) - STEERING

1

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

2шт.

2

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5171707

PIN,24.97mm OD x 91mm L

Rod

2шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

5198013

PIN,24.97mm OD x 100mm L

Body

2шт.

9

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.
