(37.120.AV[06]) - VAR - 758074, 758079, 758083 - 3 HITCH POINT, LIFT ARM

Запчасти Case IH PUMA 200 (37.120.AV[06]) - VAR - 758074, 758079, 758083 - 3 HITCH POINT, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

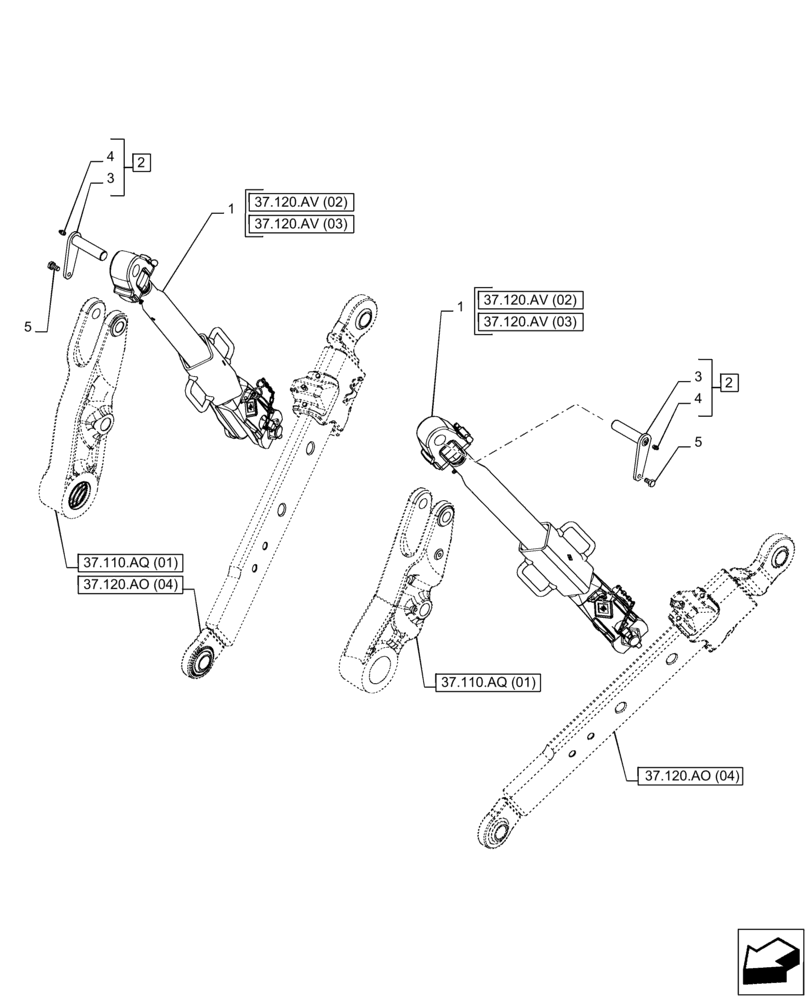

Схема запчастей Case IH PUMA 200 - (37.120.AV[06]) - VAR - 758074, 758079, 758083 - 3 HITCH POINT, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
3
1
3
2
4
37.120.ao (04)
1
5
37.110.aq (01)
4
37.120.av (03)
37.120.ao (04)
37.120.av (02)
37.120.av (03)
5
37.110.aq (01)
37.120.av (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87316262

LIFT LINK

(CBM)

2шт.

1

84311417

SUPPORT

(GKN)

2шт.

2

87317296

PIN,28mm OD x 122.5mm L

ASSY, Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

5

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

Выбрано товаров: 6
