Запчасти Case IH PUMA 200 (35.300.AN[01]) - VAR - 391161, 758056 - OIL FILTER, POWERSHIFT (35) - HYDRAULIC SYSTEMS

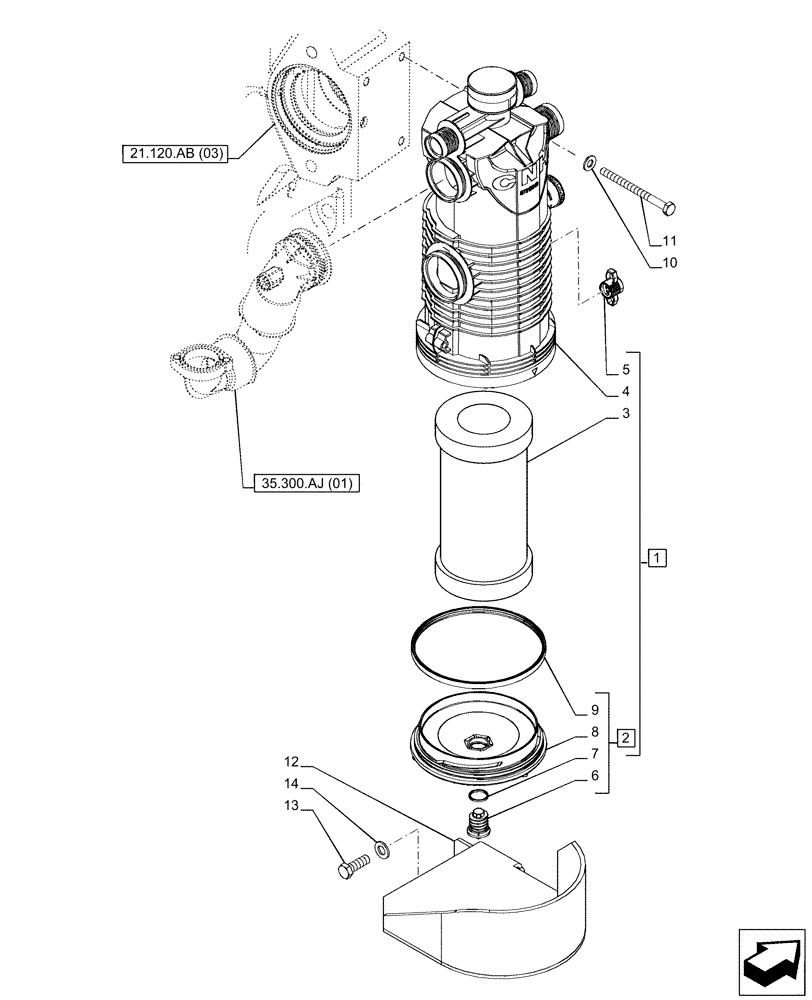

Схема запчастей Case IH PUMA 200 - (35.300.AN[01]) - VAR - 391161, 758056 - OIL FILTER, POWERSHIFT (35) - HYDRAULIC SYSTEMS
35.300.aj (01)
14
9
4
7
3
11
8
10
13
12
5
6
2
1
21.120.ab (03)

Артикул

Название

Примечание

Количество

1

87313049

FILTER ASSY

ASSY, Incl 2 - 5

1шт.

2

87705159

FILTER COVER

ASSY, Incl 6 - 9

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

87705160

ARRESTER

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Oring, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Gasket, Incl in 2

1шт.

10

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

11

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

12

87758486

SHIELD

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

Выбрано товаров: 14
