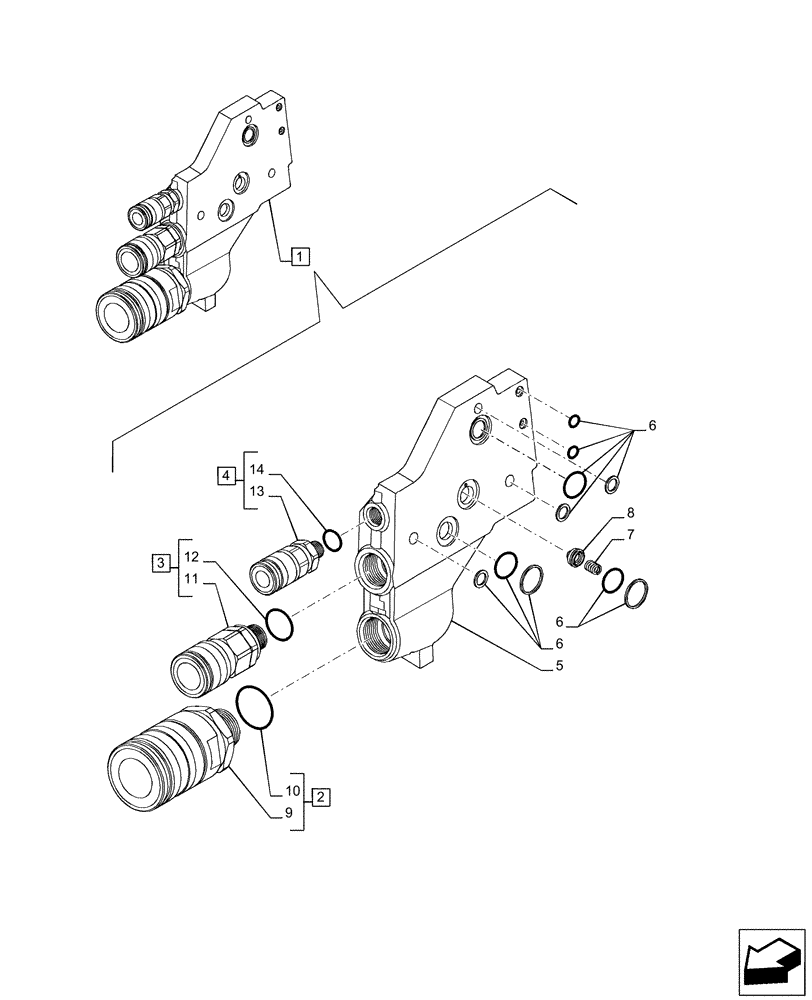

Запчасти Case IH PUMA 200 (35.204.AX[01]) - VAR - 391164 - POWER BEYOND VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47135544

HYD VALVE SECTION

ASSY, Incl 2 - 8

1шт.

2

87310811

PUSH-PULL COUPLING

ASSY, Incl 9, 10

1шт.

3

87310813

PUSH-PULL COUPLING

ASSY, Incl 11, 12

1шт.

4

87310816

PUSH-PULL COUPLING

ASSY, Incl 13, 14

1шт.

5

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

6

47126955

SEAL KIT

Seals

1шт.

7

5191716

VALVE

1шт.

8

47129466

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

Coupling, Incl in 2

1шт.

10

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Coupling, Incl in 2

1шт.

12

14438185

O-RING,24mm ID x 3mm

1шт.

13

NSS

NOT SOLD SEPARAT

Coupling, Incl in 4

1шт.

14

14437785

O-RING,11.3mm ID x 2.4mm

1шт.
