Запчасти Case IH PUMA 200 (35.124.AB[01]) - VAR - 758072, 758077, 758082 - SOLENOID VALVE, LINE (35) - HYDRAULIC SYSTEMS

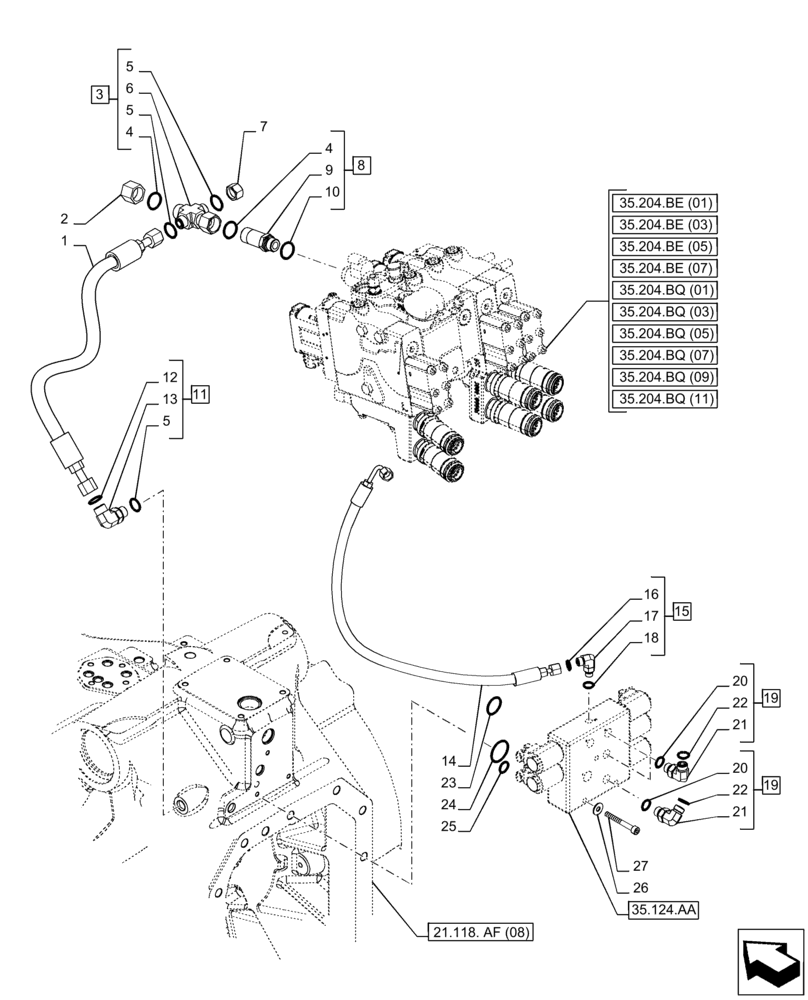

Схема запчастей Case IH PUMA 200 - (35.124.AB[01]) - VAR - 758072, 758077, 758082 - SOLENOID VALVE, LINE (35) - HYDRAULIC SYSTEMS
4
20
11
24
35.204.bq (11)
21
23
35.204.be (03)
26
16
9
12
2
8
20
35.204.bq (03)
6
22
35.204.be (01)
14
21.118. af (08)
5
4
35.204.be (07)
21
35.204.bq (09)
35.124.aa
5
5
1
35.204.bq (01)
35.204.bq (07)
19
27
7
15
19
3
35.204.be (05)
10
25
18
13
35.204.bq (05)
17
22

Артикул

Название

Примечание

Количество

1

47123014

HYDRAULIC HOSE,10mm ID x 485mm L, SAE 100R2

Supply

1шт.

2

83987627

CAP,1-14UN-2A

1шт.

3

5199116

4 WAY CONNECTION

ASSY, Incl 4 (Q.ty 1), 5 (Q.ty 2), 6

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

6

NSS

NOT SOLD SEPARAT

Union, Incl in 3

1шт.

7

47123020

PLUG,Hex

1шт.

8

5199935

HYD CONNECTOR

ASSY, Incl 4 (Q.ty 1), 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

ASSY, Incl 5 (Q.ty 1), 12, 13

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

14

87302784

FLEXIBLE HOSE,6.4mm ID x 645mm L

LS

1шт.

15

47123008

ELBOW

ASSY, Incl 16 - 18

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

18

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

19

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 20 - 22

4шт.

20

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

21

NSS

NOT SOLD SEPARAT

Elbow, Incl in 19

1шт.

22

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

23

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

24

14458181

O-RING,29.82mm ID x 2.62" Width

1шт.

25

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

26

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

27

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

3шт.

Выбрано товаров: 27
