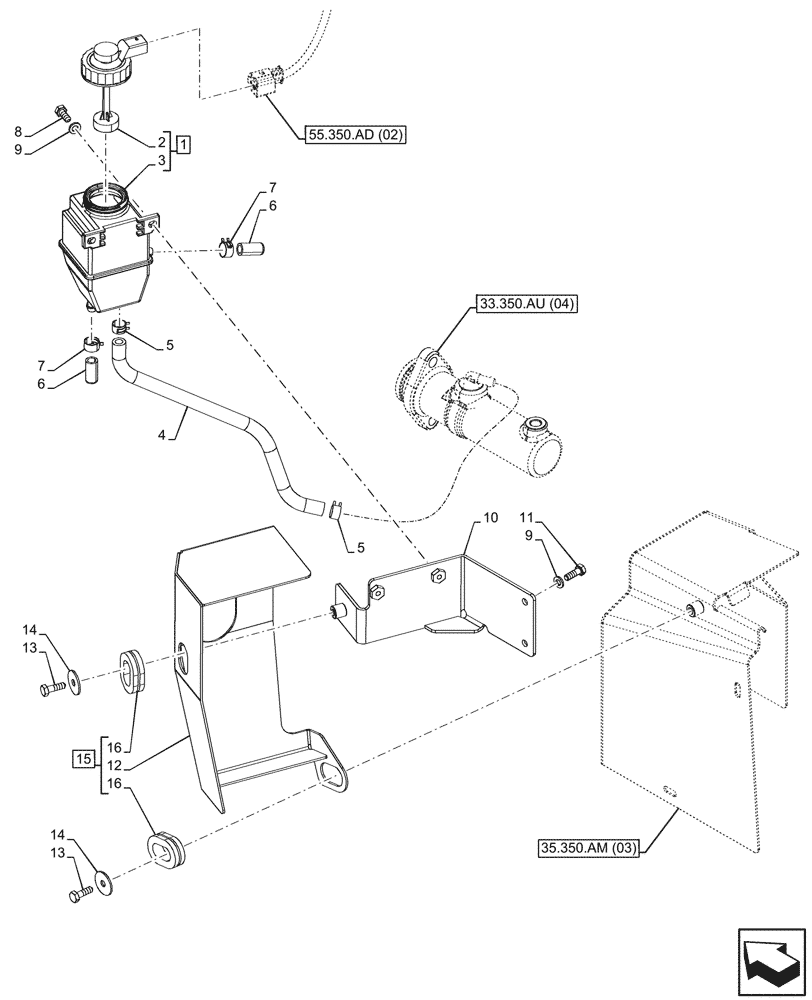

Запчасти Case IH PUMA 200 (33.350.AR[04]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE FLUID RESERVOIR (33) - BRAKES & CONTROLS

1

82036189

TANK

ASSY, Incl 2, 3

1шт.

2

82031428

PLUG

1шт.

3

82036188

BRAKE FLUID TANK

1шт.

4

47528675

HOSE

Output Oil Reservoir

1шт.

5

82011382

HOSE CLAMP,15mm - 17mm

2шт.

6

81871497

COVER

2шт.

7

81864605

HOSE CLAMP,11.5mm - 14.75mm

2шт.

8

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

10

47528431

BRACKET

1шт.

11

10902329

SCREW,Hex, M6 x 18mm, Cl 8.8

M6 x 18

2шт.

12

NSS

NOT SOLD SEPARAT

Cover, Incl in 15

1шт.

13

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

14

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

15

47528383

COVER

ASSY, Incl 12, 16

1шт.

16

84528845

GROMMET

2шт.
