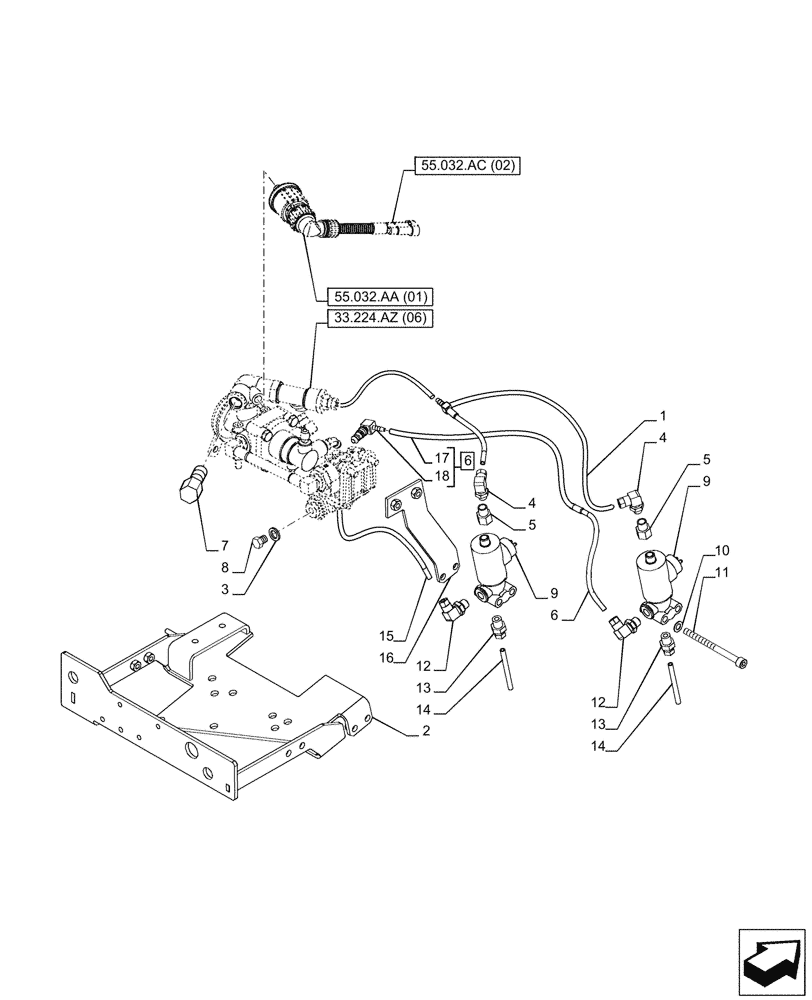

Запчасти Case IH PUMA 200 (33.224.AZ[05]) - VAR - 337484, 337487, 758041, 758042 - TRAILER BRAKE VALVE (33) - BRAKES & CONTROLS

1

84358408

FLEXIBLE HOSE

1шт.

2

84157684

SUPPORT

1шт.

3

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

4

87678122

HYD CONNECTOR,M10 x 1

2шт.

5

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

6

84157675

FLEXIBLE HOSE,436.00 mm

ASSY, Incl 17, 18

1шт.

7

82014913

PLUG,M22 x 1.5 x 9mm L

1шт.

8

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

9

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.

10

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

2шт.

11

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

12

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

13

82006828

ADAPTER

2шт.

14

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

15

87580708

TUBE,4 mm ID x 6 mm OD x 253 mm L

1шт.

16

84143167

SUPPORT

1шт.

17

82036158

ELBOW,9.1mm OD x 31.5mm, 6x1Tube

1шт.

18

NSS

NOT SOLD SEPARAT

Incl in 6

1шт.
