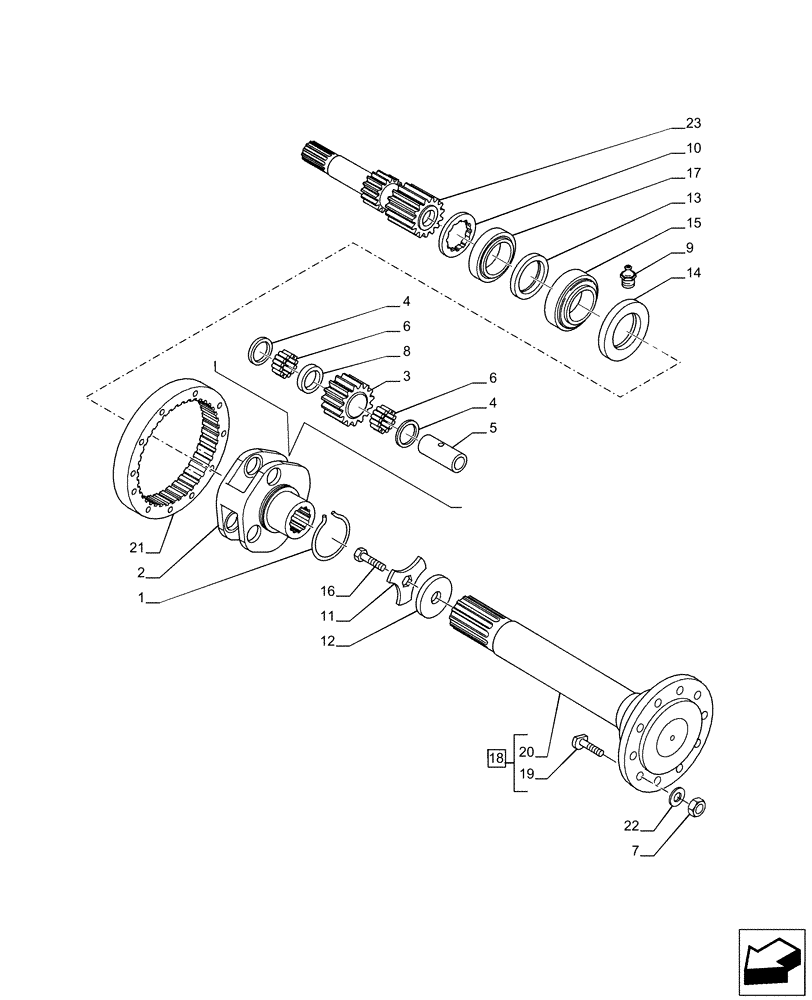

Запчасти Case IH PUMA 200 (27.120.AF[01]) - VAR - 391158, 391159, 758052, 758053, 758054, 758162 - FINAL DRIVE, GEAR, FLANGE AXLE (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87307356

PINION CARRIER

Gear

2шт.

3

87307351

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

10719824

NUT,M22 x 10, DAC

20шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84370195

WASHER,22.5mm ID x 100mm OD x 10mm Thk

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

14

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

15

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

16

47618253

BOLT,Hex, M22 x 1.5 x 55mm, Full Thd, Cl 10.9

2шт.

17

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

2шт.

18

87311159

WHEEL SHAFT

ASSY, Incl 19, 20

2шт.

19

87307103

WHEEL BOLT,M22 x 2.5 x 91mm

10шт.

20

NSS

NOT SOLD SEPARAT

Well Shaft, Incl in 18

2шт.

21

87307352

RING GEAR

2шт.

22

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

23

84271050

GEAR SHAFT

2шт.
