Запчасти Case IH PUMA 200 (25.108.AG[15]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM

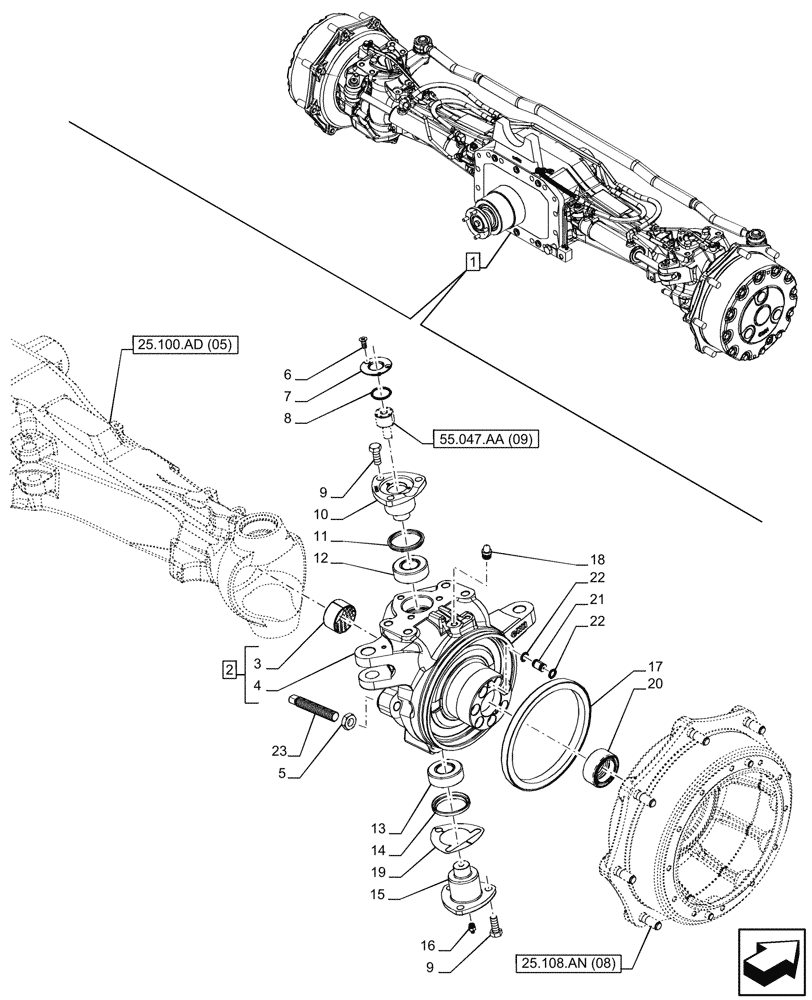

Схема запчастей Case IH PUMA 200 - (25.108.AG[15]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING KNUCKLE, RH (25) - FRONT AXLE SYSTEM
14
9
8
25.100.ad (05)
22
19
11
25.108.an (08)
2
7
17
13
21
15
9
12
16
6
1
10
55.047.aa (09)
22
5
3
18
20
23
4

Артикул

Название

Примечание

Количество

1

84381243

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 23

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AB (03), 25.108.AC (08), 25.108.AG (16), 25.108.AN (08), 33.204.AB (03), 33.204.AD (03), 33.204.AG (05), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16), 55.047.AA (09)

1шт.

2

84263790

STEERING KNUCKLE

ASSY, Incl 3, 4

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Knuckle, Incl in 2

1шт.

5

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

1шт.

6

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

7

84384510

TOP

1шт.

8

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

9

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

10

87345372

BALL STUD

Upper

1шт.

11

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

12

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

13

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

1шт.

14

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

1шт.

15

87382384

BALL STUD

1шт.

16

13407211

LUBE NIPPLE,M10 x 1

1шт.

17

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

1шт.

18

13413290

BREATHER

1шт.

19

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

2шт.

19

5137115

SHIM,0.15mm Thk

1шт.

19

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

1шт.

19

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

1шт.

19

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

1шт.

20

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.

21

5173504

PAWL,16mm OD x 25mm L

1шт.

22

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

23

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

1шт.

Выбрано товаров: 28
