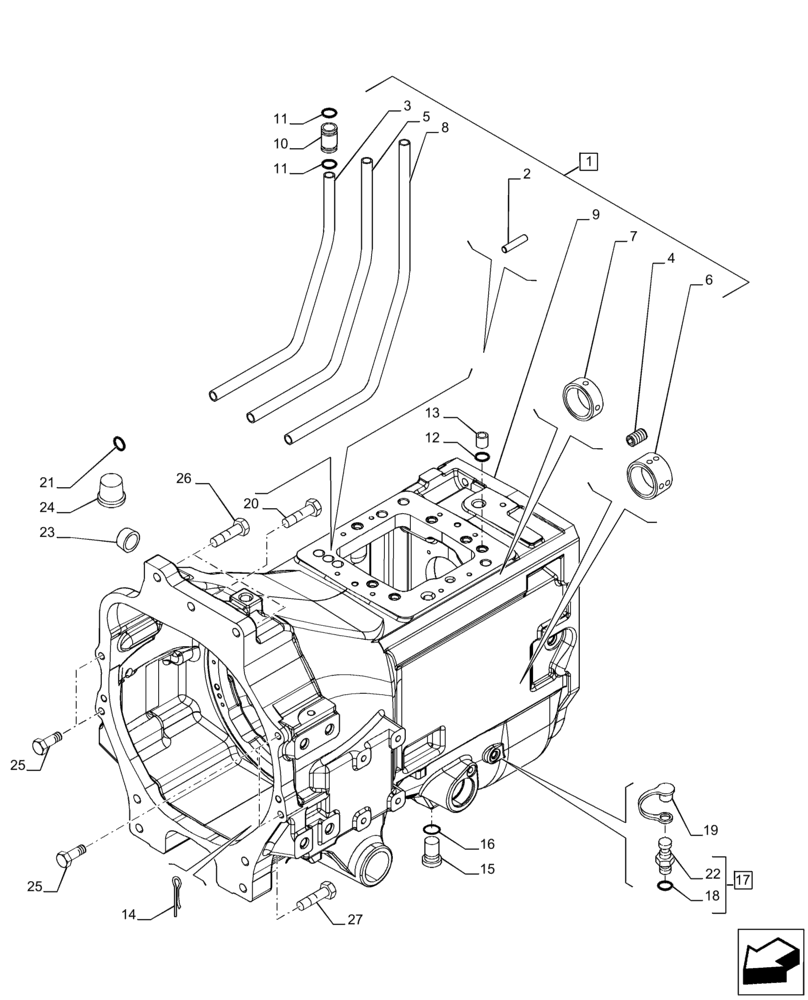

Запчасти Case IH PUMA 200 (21.120.AB[01]) - VAR - 337426, 337427, 337428, 337429, 337430, 337431, 337432, 337433, 391137, 758017, 758018, 758019, 758020, 758021 - GEARBOX, POWERSHIFT (21) - TRANSMISSION

1

47361978

TRANSMISSION HOUSING

ASSY, Incl 2 - 9

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

5186835

TUBE

1шт.

4

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

5

5186834

TUBE

1шт.

6

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

1шт.

7

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

1шт.

8

5186836

TUBE

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

10

5198658

BUSHING

3шт.

11

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

6шт.

13

5178778

SPACER,11mm ID x 15mm OD x 15mm L

6шт.

14

10798204

COTTER PIN,M6.3 x 32

1шт.

15

5187246

PLUG

1шт.

16

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

17

5185423

COUPLING

ASSY, Incl 18, 22

4шт.

18

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

19

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

20

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

21

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

22

NSS

NOT SOLD SEPARAT

Coupling, Inc in 17

4шт.

23

82037172

PLUG

8шт.

Valid also for Var. 337433 and Steyr Models

1шт.

24

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

Valid also for Var. 337433 and Steyr Models

1шт.

25

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

26

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

27

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.
