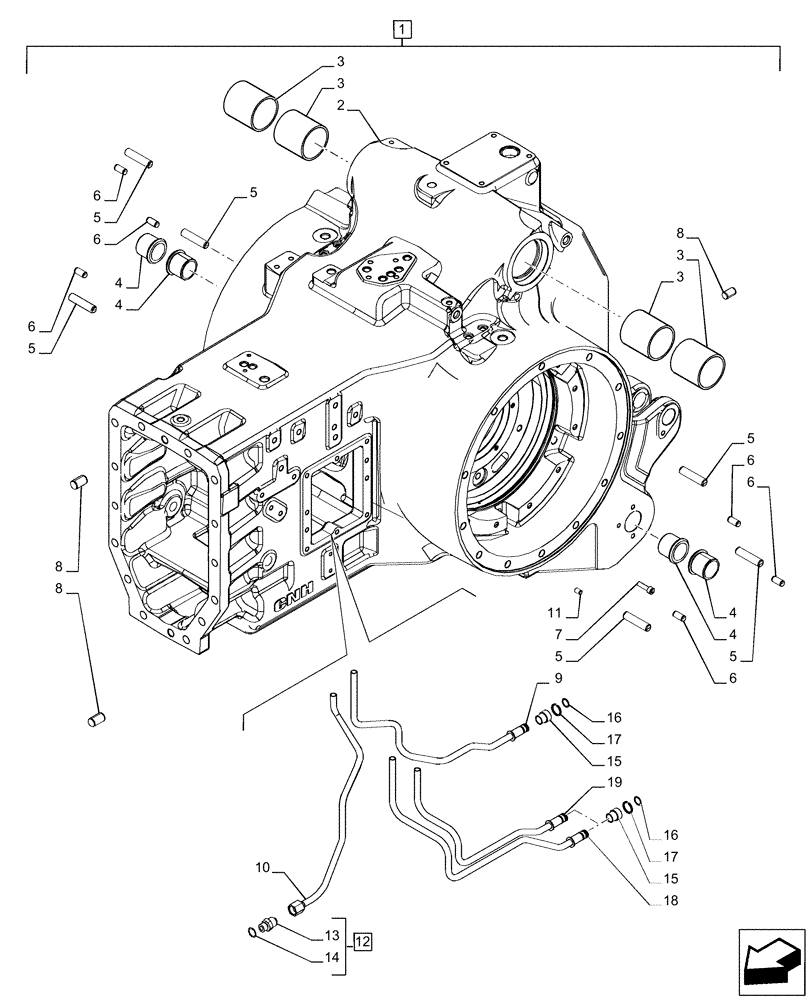

Запчасти Case IH PUMA 200 (21.118.AF[10]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 391137, 758017, 758018, 758019, 758020, 758021 - TRANSMISSION HOUSING, POWERSHIFT (21) - TRANSMISSION

1

47570060

TRANSMISSION HOUSING

ASSY, Incl 2 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

4

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

5

5187995

GUIDE PIN,15mm OD x 65mm L

6шт.

6

5110200

DOWEL,12mm OD x 25mm L

6шт.

7

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

4985062

DOWEL,15mm OD x 25mm L

4шт.

9

84269541

TUBE

1шт.

10

5198507

TUBE

4WD

1шт.

11

10839710

DOWEL,M10 x 15.00mm

2шт.

12

5154713

HYD CONNECTOR

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Connector Hyd, Incl in 18

1шт.

14

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

15

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

3шт.

16

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

17

84268818

SNAP RING

3шт.

18

84269540

TUBE

1шт.

19

84271077

TUBE

1шт.
