(50.100.AP[05]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER, COMPONENTS

Запчасти Case IH PUMA 185 (50.100.AP[05]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL

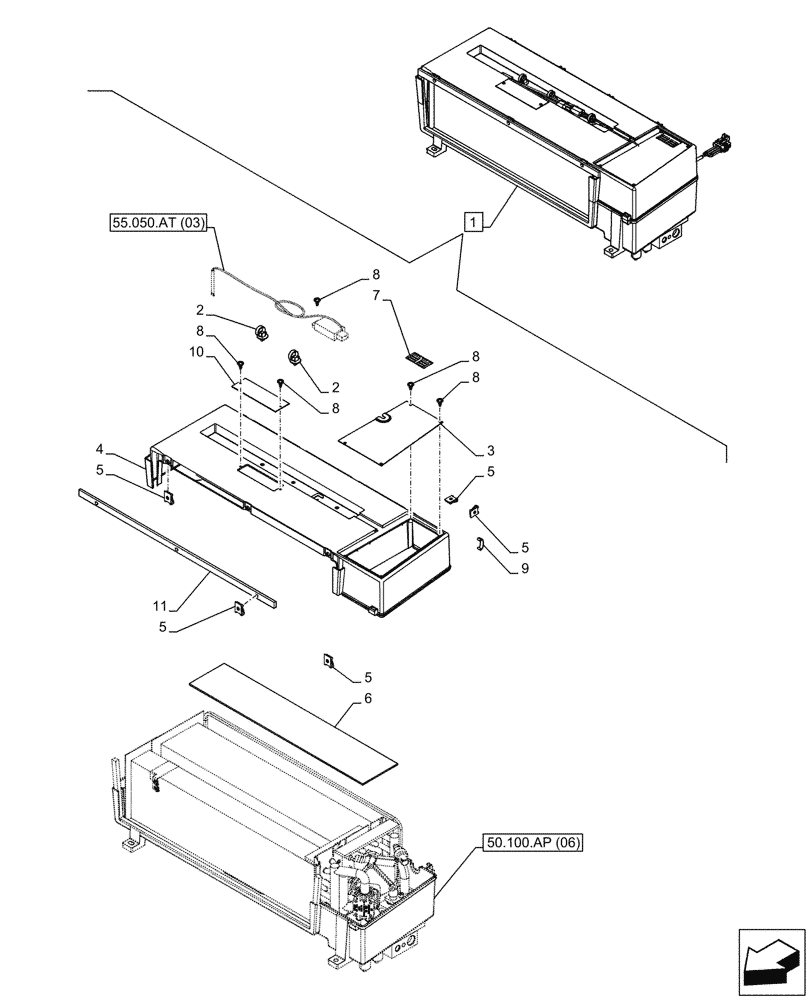

Схема запчастей Case IH PUMA 185 - (50.100.AP[05]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL
55.050.at (03)
5
8
11
4
6
5
5
8
7
8
9
5
8
2
8
3
10
1
5
2
50.100.ap (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84233168

AIR CONDITIONER

ASSY, Electronic, Incl 2 - 11

1шт.

See also Air Conditioner Components in Figure 50.100.AP (06), 55.050.AT (03), 50.200.CA, 50.100.AI

1шт.

2

84231993

ANCHOR

3шт.

3

84231981

PLATE

Access

1шт.

4

87699545

HOUSING

Upper

1шт.

5

83907330

SPRING NUT

13шт.

6

82033109

SEAL,3mm Thk, Grey

1шт.

7

82029245

DECAL

1шт.

8

82028948

SCREW,M3 x 6mm

6шт.

9

82024392

CLIP,7mm W

4шт.

10

82024382

PLATE

1шт.

11

82024395

SEAL,536.1mm L x 5mm Thk

1шт.
