(50.100.AP[04]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER

Запчасти Case IH PUMA 185 (50.100.AP[04]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER (50) - CAB CLIMATE CONTROL

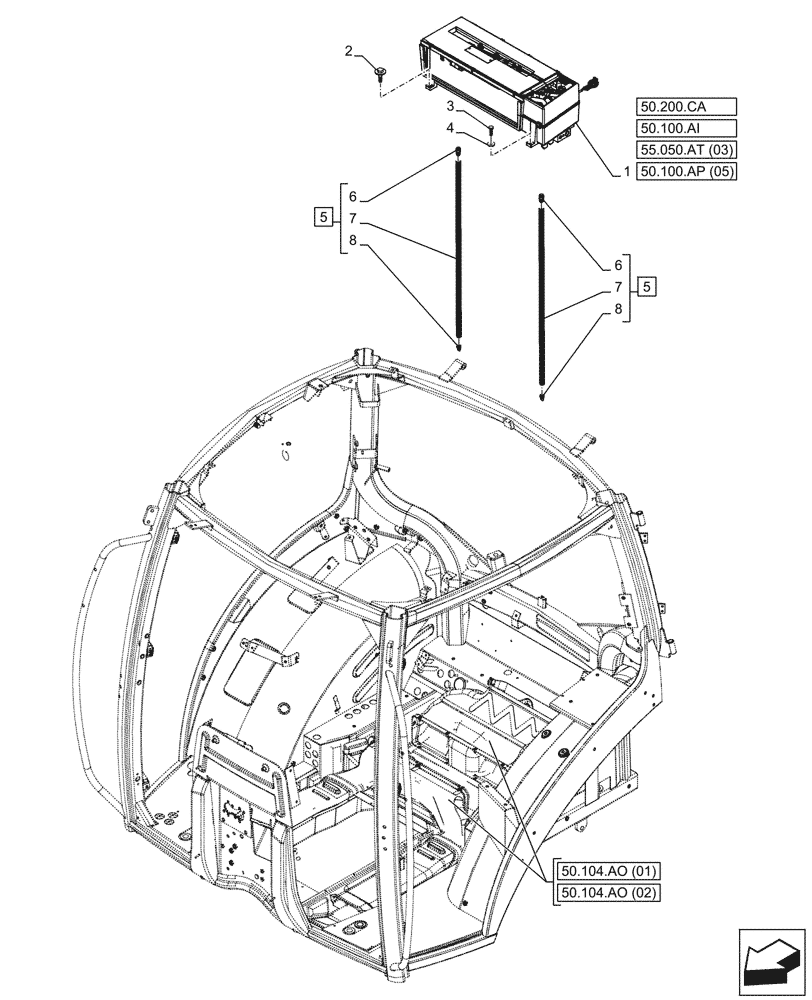

Схема запчастей Case IH PUMA 185 - (50.100.AP[04]) - VAR - 758131, 758133, 758265, 758666, 758667, 758668, 758669, 759265 - AIR CONDITIONING WITH ATC, AIR CONDITIONER (50) - CAB CLIMATE CONTROL
55.050.at (03)
6
8
3
5
7
5
6
50.100.ap (05)
4
2
7
50.100.ai
8
1
50.200.ca
50.104.ao (02)
50.104.ao (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84233168

AIR CONDITIONER

ASSY, Electronic

1шт.

2

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

5

84232466

TUBE

ASSY, Incl 6 - 8

2шт.

6

84231998

DRAIN

1шт.

7

NSS

NOT SOLD SEPARAT

Hose, Incl in 5

1шт.

8

84232000

CHECK VALVE

1шт.
