Запчасти Case IH PUMA 185 (50.100.AC[01]) - VAR - 391130, 758000 - HEATER, LINES (50) - CAB CLIMATE CONTROL

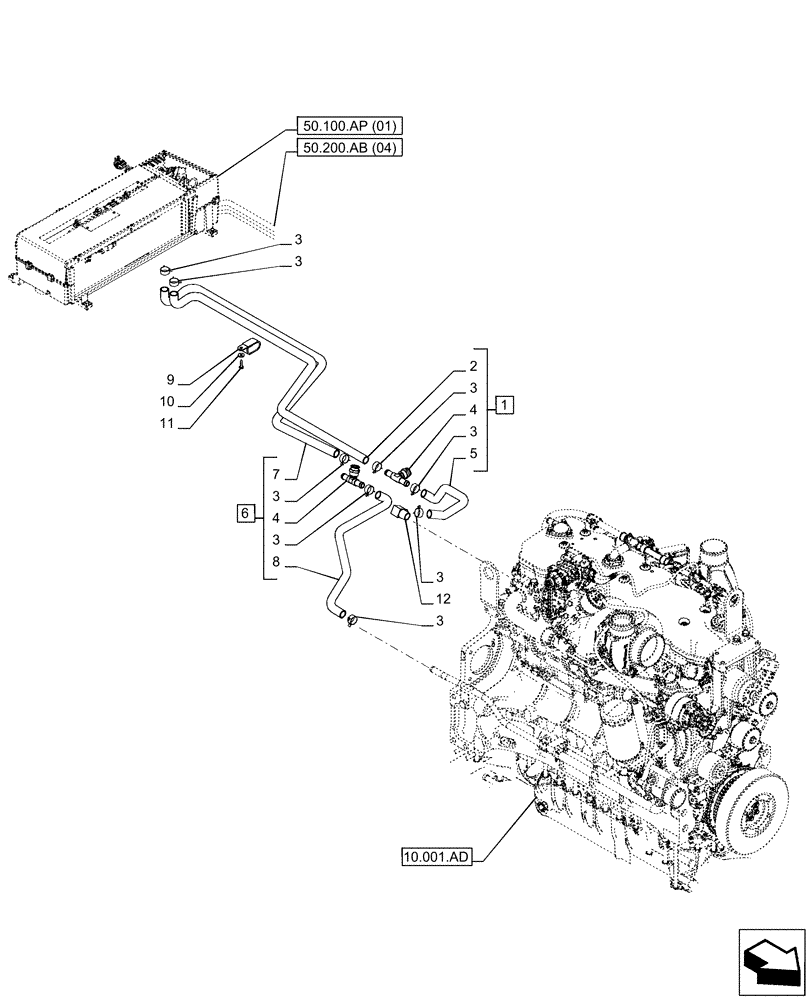

Схема запчастей Case IH PUMA 185 - (50.100.AC[01]) - VAR - 391130, 758000 - HEATER, LINES (50) - CAB CLIMATE CONTROL
50.100.ap (01)
3
3
3
11
7
4
2
6
5
4
3
3
3
8
3
1
3
12
10
9
50.200.ab (04)
10.001.ad

Артикул

Название

Примечание

Количество

1

47437903

HOSE ASSY.

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Heater, Incl in 1

1шт.

3

82019905

HOSE CLAMP,22 - 26mm X 12mm

8шт.

4

84283392

UNION TEE

2шт.

5

NSS

NOT SOLD SEPARAT

Tube, Heater, Incl in 1

1шт.

6

47437907

HOSE ASSY.

ASSY, Incl 3, 4, 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Heater, Incl in 6

1шт.

8

NSS

NOT SOLD SEPARAT

Tube, Heater, Incl in 6

1шт.

9

82023568

CLAMP,2 Hoses

Water Hose

1шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

11

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

1шт.

12

87302771

ADAPTER

Hose

1шт.

Выбрано товаров: 12
