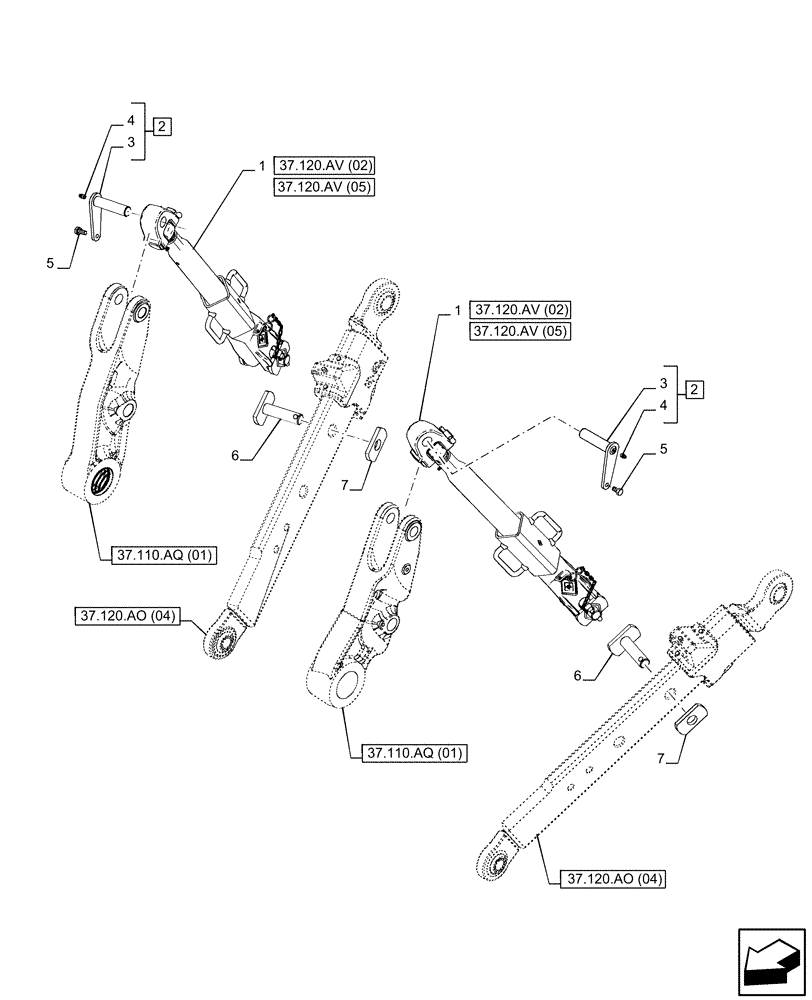

Запчасти Case IH PUMA 185 (37.120.AV[03]) - VAR - 758074, 758079, 758083 - 3 POINT HITCH, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87316262

LIFT LINK

ASSY, Standard

2шт.

See also Figure 37.120.AV 02

1шт.

1

87311417

LIFT LINK

ASSY, Alternative Part

2шт.

Same Usage/Applicability. To be Ordered when P/N 87316262 is not Available

1шт.

2

87317296

PIN,28mm OD x 122.5mm L

ASSY, Incl 3 (Qty 1), 4 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

2шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

6

87315467

PIN

2шт.

Order only when P/N 87311417 Is Equipped

1шт.

7

87315466

PLATE

2шт.

Order only when P/N 87311417 Is Equipped

1шт.
