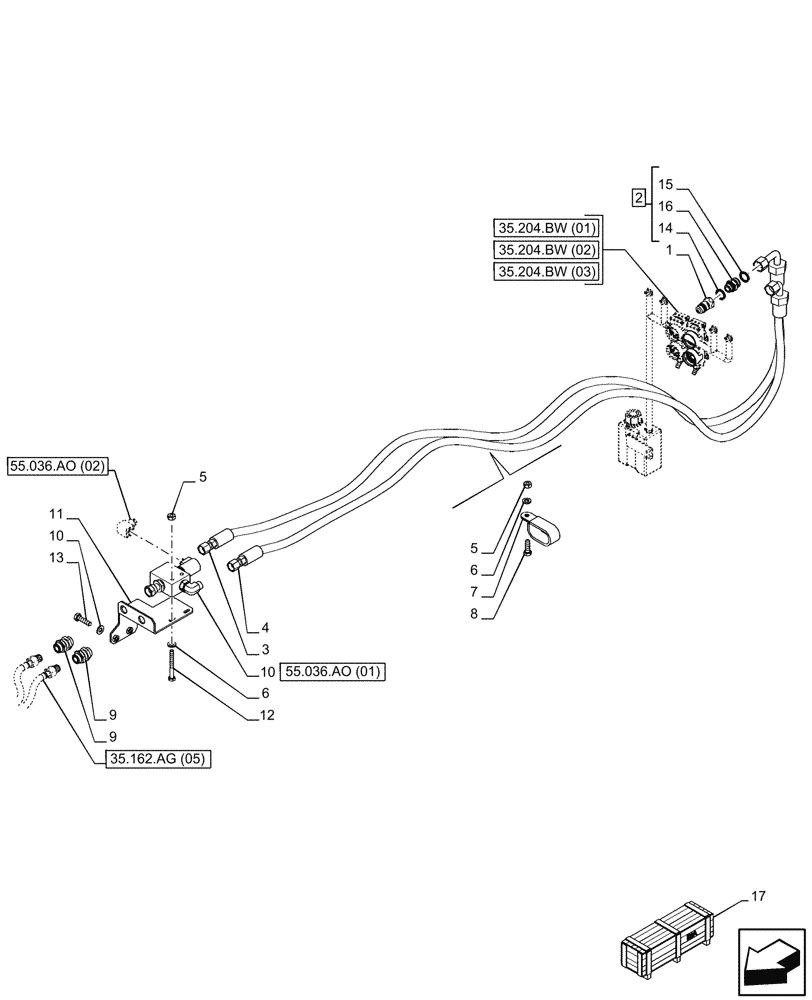

Запчасти Case IH PUMA 185 (35.162.AG[07]) - VAR - 758088 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

83972881

COUPLING

2шт.

2

5185524

HYD CONNECTOR

ASSY, Incl 14 (Qty 1), 15 (Qty 1), 16 (Qty 1)

2шт.

3

47685466

HOSE

1950mm, from Solenoid Valve to Rear Remote Control Valve

1шт.

4

47685448

HOSE

1850mm, from Solenoid Valve to Rear Remote Control Valve

1шт.

5

15896211

NUT,M6, Cl 8

3шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

7

82023568

CLAMP,2 Hoses

1шт.

8

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

9

82039603

HYD CONNECTOR

2шт.

10

87329928

HYDRAULIC VALVE

1шт.

11

84201721

SUPPORT

1шт.

12

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

13

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

15

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

17

710065014

DIA KIT, TRACTOR

Additional Fitting KIT (Solenoid Valve for Max Height Regulation), Incl 1, 2, 5, 6, 12

1шт.

To See Full DIA Kit Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
