(35.160.AF[03]) - VAR - 758092, 758246 - 3 POINT HITCH, FRONT W/COUPLER, VALVE

Запчасти Case IH PUMA 185 (35.160.AF[03]) - VAR - 758092, 758246 - 3 POINT HITCH, FRONT W/COUPLER, VALVE (35) - HYDRAULIC SYSTEMS

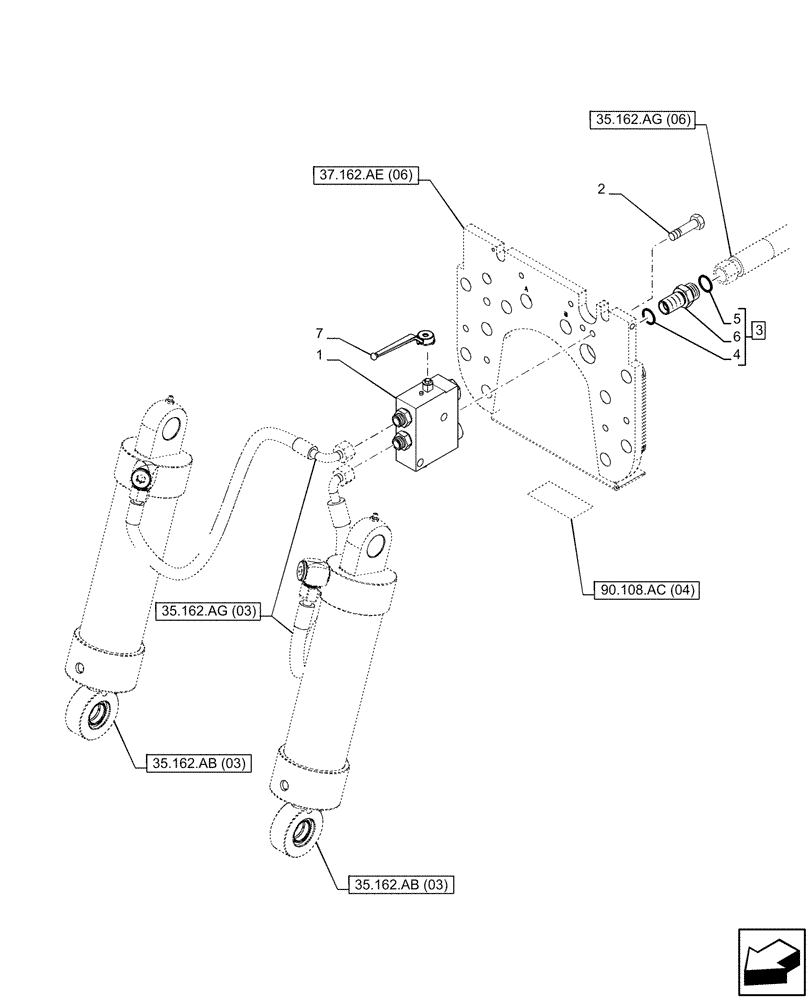

Схема запчастей Case IH PUMA 185 - (35.160.AF[03]) - VAR - 758092, 758246 - 3 POINT HITCH, FRONT W/COUPLER, VALVE (35) - HYDRAULIC SYSTEMS
37.162.ae (06)
5
1
6
4
2
7
3
90.108.ac (04)
35.162.ag (03)
35.162.ag (06)
35.162.ab (03)
35.162.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84481192

PILOT VALVE

1шт.

2

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 4 - 6

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

7

84408282

LEVER

1шт.
