(35.160.AF[02]) - VAR - 758091, 758245 - 3 POINT HITCH, FRONT, VALVE

Запчасти Case IH PUMA 185 (35.160.AF[02]) - VAR - 758091, 758245 - 3 POINT HITCH, FRONT, VALVE (35) - HYDRAULIC SYSTEMS

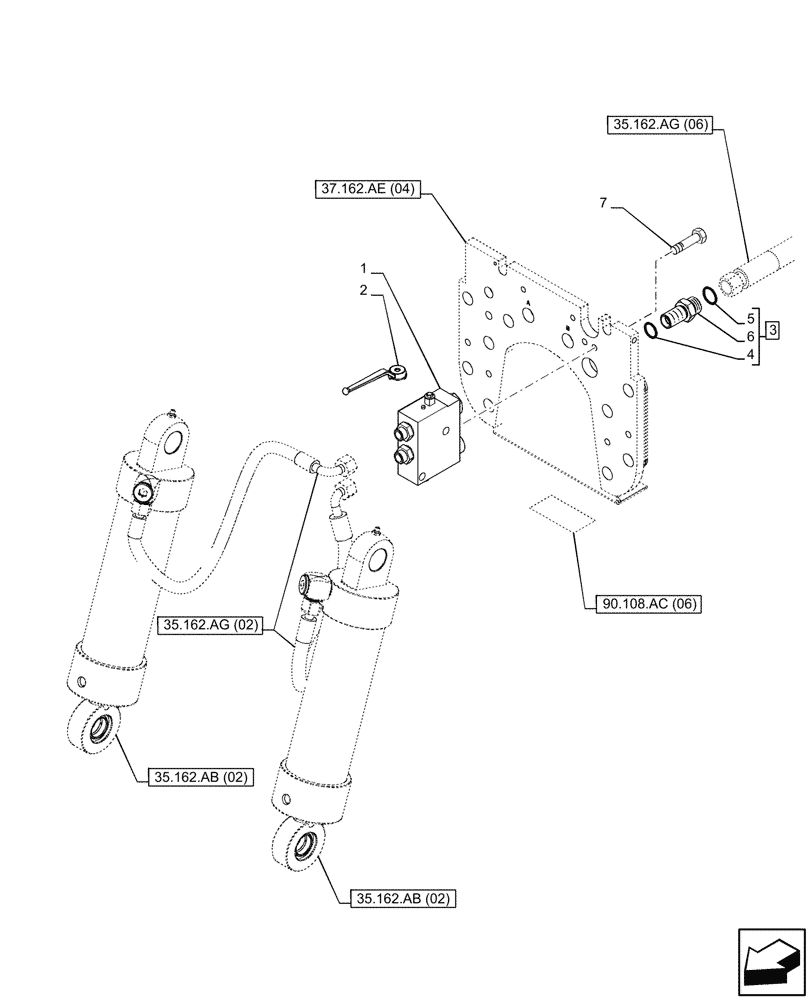

Схема запчастей Case IH PUMA 185 - (35.160.AF[02]) - VAR - 758091, 758245 - 3 POINT HITCH, FRONT, VALVE (35) - HYDRAULIC SYSTEMS
35.162.ag (02)
5
4
2
6
7
3
1
90.108.ac (06)
35.162.ag (06)
37.162.ae (04)
35.162.ab (02)
35.162.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84481192

PILOT VALVE

1шт.

2

84408282

LEVER

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 4 - 6

1шт.

4

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

7

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.
