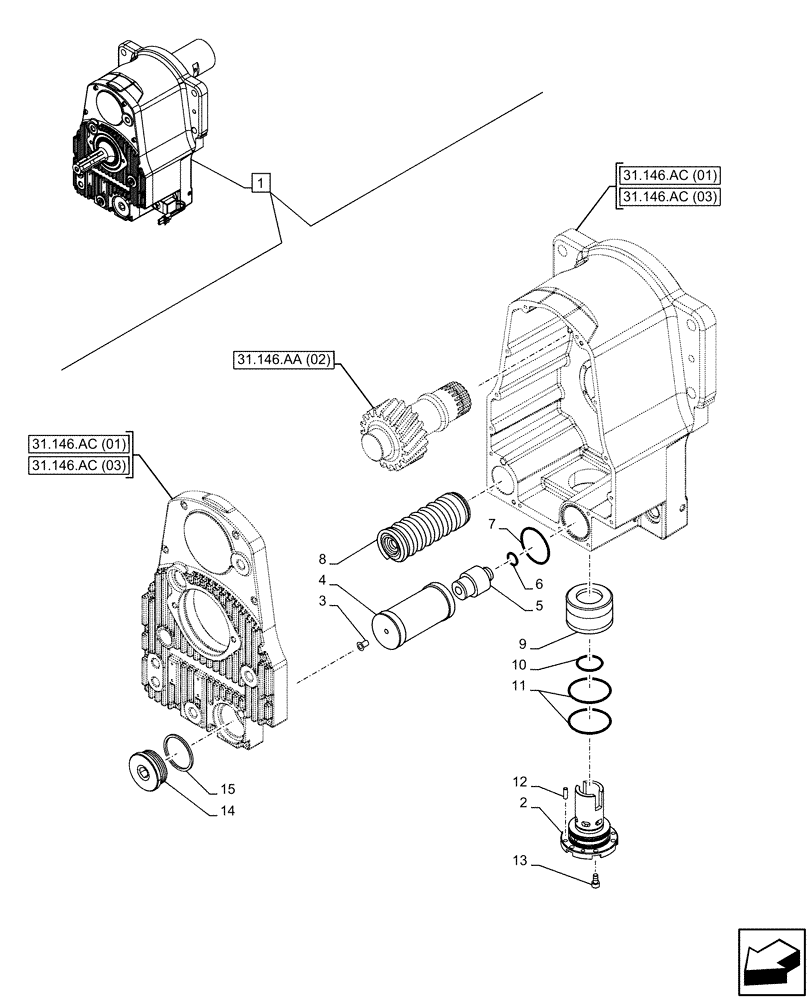

Запчасти Case IH PUMA 185 (31.142.AA) - VAR - 758091, 758093, 758245, 758247 - FRONT, 3 POINT HITCH, FRONT PTO, ACTUATOR (31) - IMPLEMENT POWER TAKE OFF

1

84481589

FRONT PTO ASSY

ASSY, Incl 2 - 15

1шт.

See also Figure 31.146.AA (02), 31.146.AC (02), 31.146.AE

1шт.

2

47413974

PUMP

1шт.

3

14441131

SCREW,Hex Soc Flat Hd, M6 x 10, 10.9

1шт.

4

84484094

FILTER

1шт.

5

84483778

PIN

1шт.

6

84483931

O-RING,1.5mm Thk x 12mm ID, 70 Duro

12 x 1.5

1шт.

7

84483959

O-RING,2mm Thk x 50mm ID, 70 Duro

50 x 2

1шт.

8

47413979

SPOOL

1шт.

9

84483496

FILTER

1шт.

10

84483952

O-RING,35mm ID x 37mm OD x 1mm Thk

35 x 1

1шт.

11

84483961

O-RING,2mm Thk x 51mm ID, 70 Duro

51 x 2

2шт.

12

84484354

PIN

2шт.

13

14305131

HEX SOC SCREW,M6 x 12mm, Cl 10.9, Full Thd

6шт.

14

84484893

PLUG

48 x 2

1шт.

15

84483930

O-RING

1шт.
