Запчасти Case IH PUMA 185 (25.122.AL[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CONTROL VALVE, POWERSHIFT (25) - FRONT AXLE SYSTEM

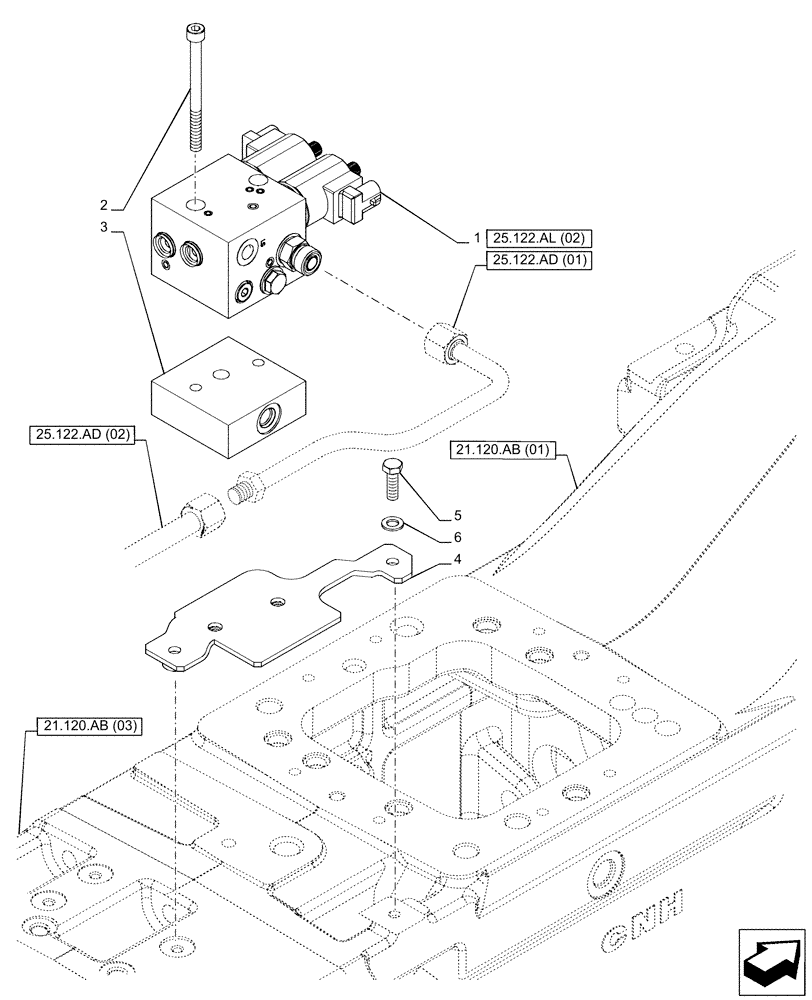

Схема запчастей Case IH PUMA 185 - (25.122.AL[01]) - VAR - 758048, 758049 - FRONT AXLE, SUSPENDED, CONTROL VALVE, POWERSHIFT (25) - FRONT AXLE SYSTEM
25.122.ad (01)
1
6
5
2
4
3
21.120.ab (01)
25.122.ad (02)
25.122.al (02)
21.120.ab (03)

Артикул

Название

Примечание

Количество

1

47526297

MANIFOLD VALVE

1шт.

2

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

M22 x 1.5

2шт.

3

47361139

BLOCK

1шт.

4

47636430

BRACKET

10.5 x 20 x 2

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 6
