(25.122.AB[02]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, COMPONENTS

Запчасти Case IH PUMA 185 (25.122.AB[02]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM

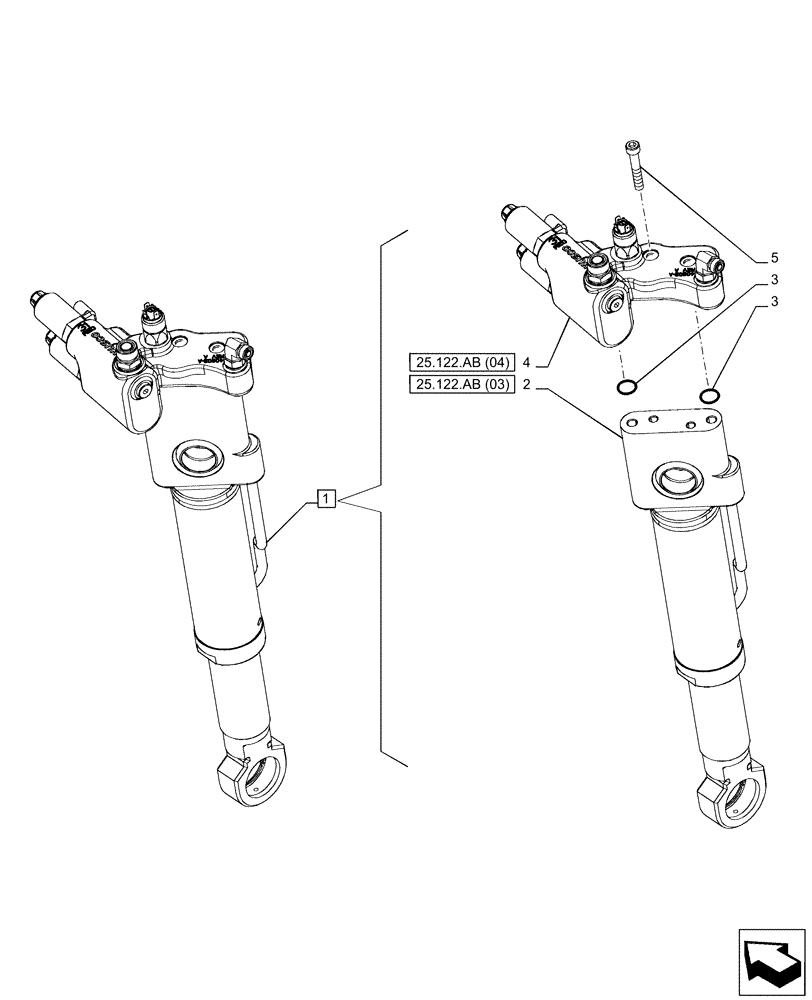

Схема запчастей Case IH PUMA 185 - (25.122.AB[02]) - VAR - 337416, 758048, 758049 - SUSPENDED FRONT AXLE, CYLINDER, COMPONENTS (25) - FRONT AXLE SYSTEM
25.122.ab (03)
5
1
2
3
3
4
25.122.ab (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84486825

OPERATING CYLINDER,Double Acting, 60mm Rod

Double Acting, 60mm Rod, ASSY, Incl 2 - 5

1шт.

2

87644387

CYLINDER,60mm Rod, 146mm Stroke

60mm Rod, 146mm Stroke ASSY

1шт.

3

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

4

84486852

ELECTRO-VALVE

1шт.

5

14420874

SCREW,M10 x 60mm, Cl 12.9

2шт.

Выбрано товаров: 5
