Запчасти Case IH PUMA 185 (25.108.AB[05]) - VAR - 337416, 758049 - SUSPENDED FRONT AXLE, W/ BRAKE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

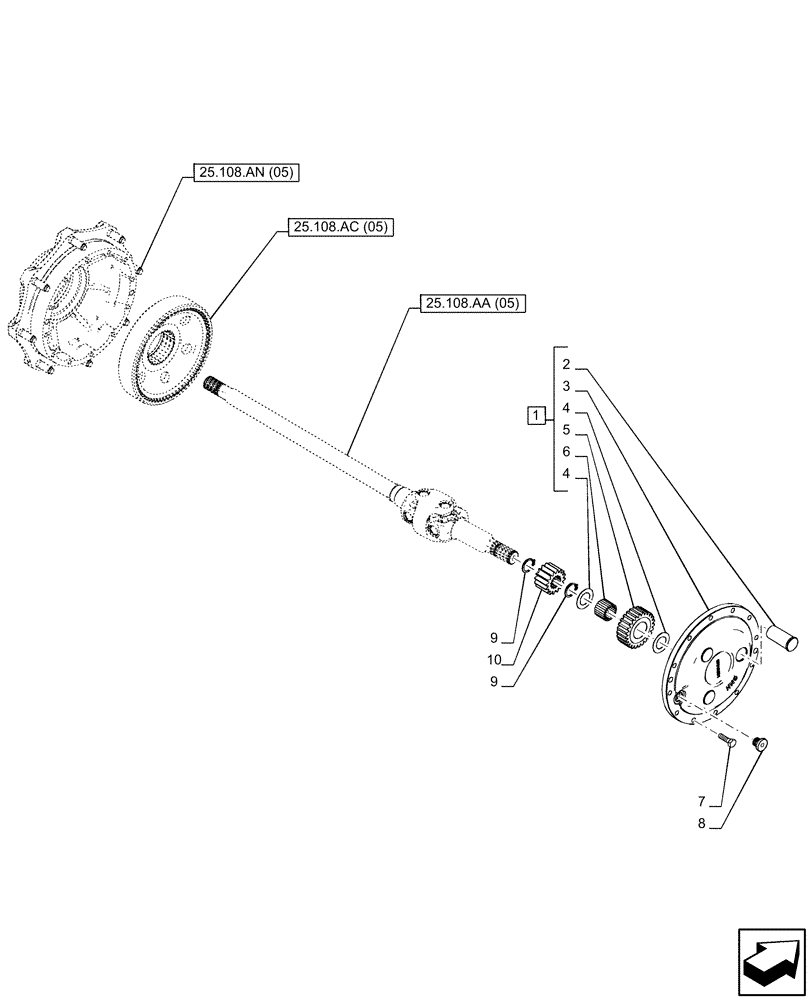

Схема запчастей Case IH PUMA 185 - (25.108.AB[05]) - VAR - 337416, 758049 - SUSPENDED FRONT AXLE, W/ BRAKE, PLANETARY GEAR (25) - FRONT AXLE SYSTEM
25.108.aa (05)
7
4
4
5
6
9
3
8
9
10
1
2
25.108.ac (05)
25.108.an (05)

Артикул

Название

Примечание

Количество

1

5181054

CARRIER

ASSY, Incl 2 - 6

1шт.

2

5181056

PIN,35mm OD x 75.5mm L

3шт.

3

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

1шт.

4

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

6шт.

5

5102132

PLANETARY GEAR

3шт.

6

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

3шт.

7

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

8

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

9

5123651

SNAP RING,36mm, External

2шт.

10

5136819

PLANETARY GEAR

1шт.

Выбрано товаров: 10
