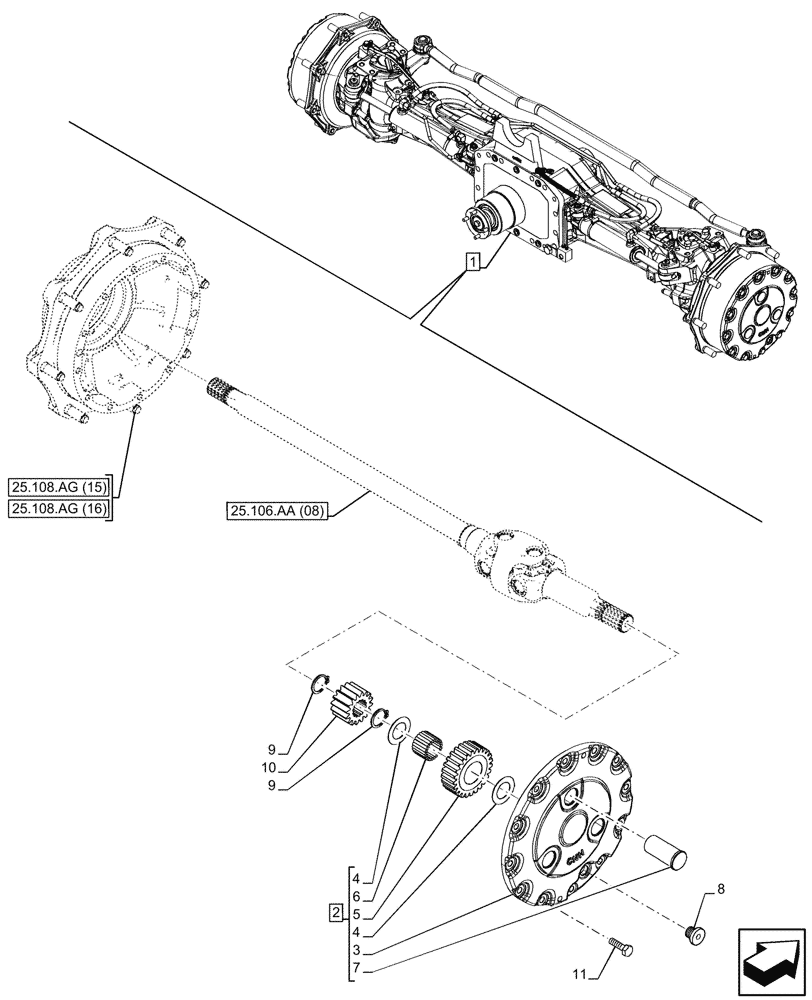

Запчасти Case IH PUMA 185 (25.108.AB[03]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, PLANETARY GEAR (25) - FRONT AXLE SYSTEM

1

84381243

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 11

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AC (08), 25.108.AG (15), 25.108.AG (16), 25.108.AN (08), 33.204.AB (03), 33.204.AD (03), 33.204.AG (05), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16), 55.047.AA (09)

1шт.

2

5181054

CARRIER

ASSY, Incl 3 - 7

1шт.

3

5181055

CARRIER

1шт.

4

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

6шт.

5

5102132

PLANETARY GEAR

3шт.

6

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

3шт.

7

5181056

PIN,35mm OD x 75.5mm L

3шт.

8

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

9

5123651

SNAP RING,36mm, External

2шт.

10

84262815

PLANETARY GEAR

1шт.

11

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.
