Запчасти Case IH PUMA 185 (25.108.AA[05]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, SHAFT (25) - FRONT AXLE SYSTEM

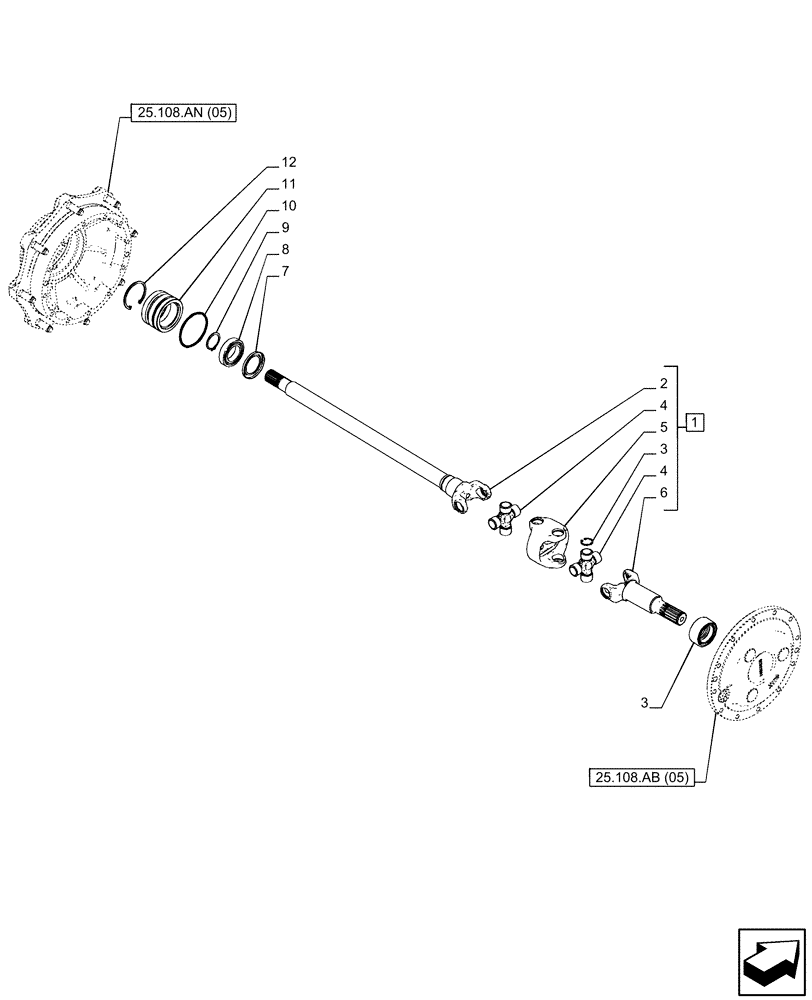

Схема запчастей Case IH PUMA 185 - (25.108.AA[05]) - VAR - 337416 - SUSPENDED FRONT AXLE, W/ BRAKE, SHAFT (25) - FRONT AXLE SYSTEM
25.108.an (05)
6
12
10
9
11
4
5
3
1
7
8
2
4
3
25.108.ab (05)

Артикул

Название

Примечание

Количество

1

84524601

AXLE-SHAFT, ARTICULA

LH, ASSY, Incl 2 - 6

1шт.

1

84524602

AXLE-SHAFT, ARTICULA

RH, ASSY, Incl 2 - 6

1шт.

2

84494174

AXLE-SHAFT, ARTICULA

LH

1шт.

2

84494173

AXLE-SHAFT, ARTICULA

RH

1шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

47558291

SPIDER

2шт.

5

87568624

U-JOINT SPIDER

Double

1шт.

6

84189184

SHAFT

1шт.

7

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

1шт.

8

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

1шт.

9

5123651

SNAP RING,36mm, External

1шт.

10

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

11

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

1шт.

12

11061376

SNAP RING,M68, Int

1шт.

Выбрано товаров: 14
