Запчасти Case IH PUMA 185 (25.102.AT[02]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM

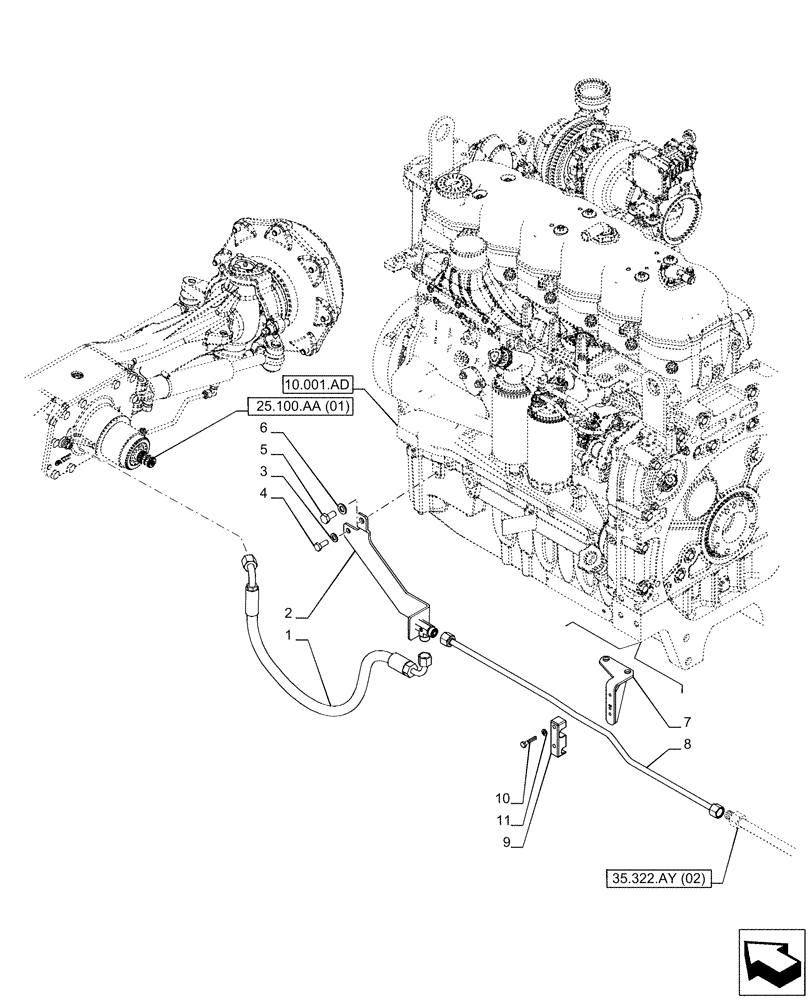

Схема запчастей Case IH PUMA 185 - (25.102.AT[02]) - VAR - 391157 - 4WD FRONT AXLE, DIFFERENTIAL LOCK, LINE (25) - FRONT AXLE SYSTEM
25.100.aa (01)
8
4
5
11
9
10
2
1
3
7
6
35.322.ay (02)
10.001.ad

Артикул

Название

Примечание

Количество

1

47670476

HOSE

Differential Lock

1шт.

2

47674987

SUPPORT

1шт.

3

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

5

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

7

47475527

BRACKET

1шт.

8

47610066

PIPE

Differential Lock

1шт.

9

87325889

BRACKET

1шт.

10

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

Выбрано товаров: 11
