Запчасти Case IH PUMA 185 (25.102.AC[03]) - VAR - 337416, 758049 - FRONT AXLE, SUSPENDED W/BRAKES, DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

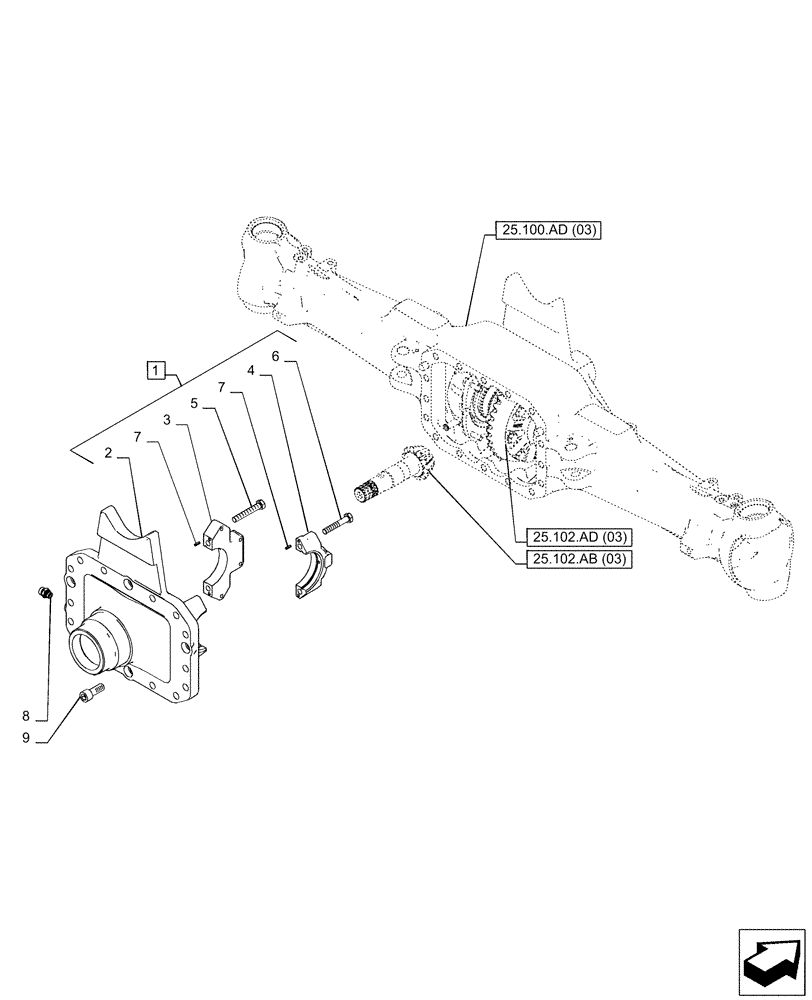

Схема запчастей Case IH PUMA 185 - (25.102.AC[03]) - VAR - 337416, 758049 - FRONT AXLE, SUSPENDED W/BRAKES, DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM
25.102.ad (03)
2
7
5
6
9
1
4
8
3
7
25.102.ab (03)
25.100.ad (03)

Артикул

Название

Примечание

Количество

1

84565069

SUPPORT

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Keep, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Keep, Incl in 1

1шт.

5

14255734

SCREW,Hex, M14 x 1.5 x 90mm, Cl 10.9

2шт.

6

14255334

SCREW,Hex, M14 x 1.5 x 75mm, Cl 10.9

2шт.

7

4966244

PIN,5mm OD x 15mm L

4шт.

8

10268350

PLUG

M10 x 1

1шт.

9

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

6шт.

Выбрано товаров: 9
