(25.100.AV[08]) - VAR - 337416, 758048, 758049 - FRONT AXLE SUPPORT, AXLE, SUSPENSION, ACCELERATOR, SENSOR

Запчасти Case IH PUMA 185 (25.100.AV[08]) - VAR - 337416, 758048, 758049 - FRONT AXLE SUPPORT, AXLE, SUSPENSION, ACCELERATOR, SENSOR (25) - FRONT AXLE SYSTEM

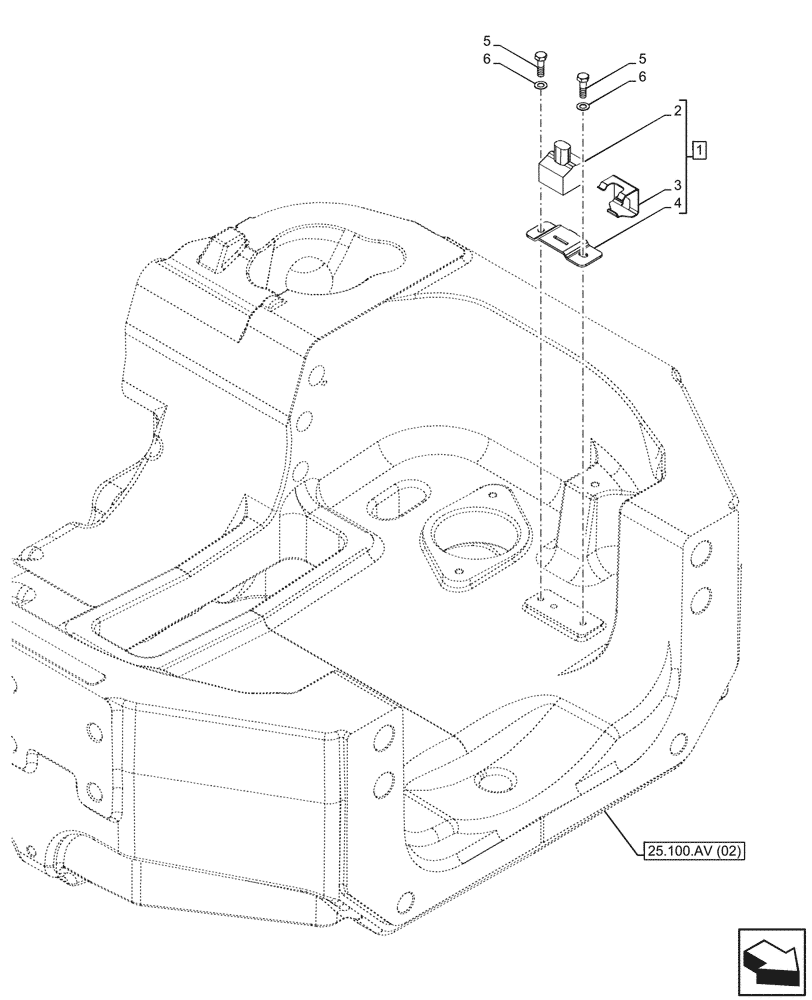

Схема запчастей Case IH PUMA 185 - (25.100.AV[08]) - VAR - 337416, 758048, 758049 - FRONT AXLE SUPPORT, AXLE, SUSPENSION, ACCELERATOR, SENSOR (25) - FRONT AXLE SYSTEM
25.100.av (02)
5
3
6
5
2
6
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87351083

SENSOR

Accelerometer, ASSY, Incl 2 - 4

1шт.

2

87306782

RELAY

1шт.

3

87319086

MOUNTING CLIP

1шт.

4

87347720

BRACKET

1шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

6

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

2шт.

Выбрано товаров: 6
