(23.314.AH[07]) - VAR - 337416, 758048, 758049 - 4WD FRONT AXLE, DRIVE SHAFT, GUARD, COVER

Запчасти Case IH PUMA 185 (23.314.AH[07]) - VAR - 337416, 758048, 758049 - 4WD FRONT AXLE, DRIVE SHAFT, GUARD, COVER (23) - FOUR WHEEL DRIVE SYSTEM

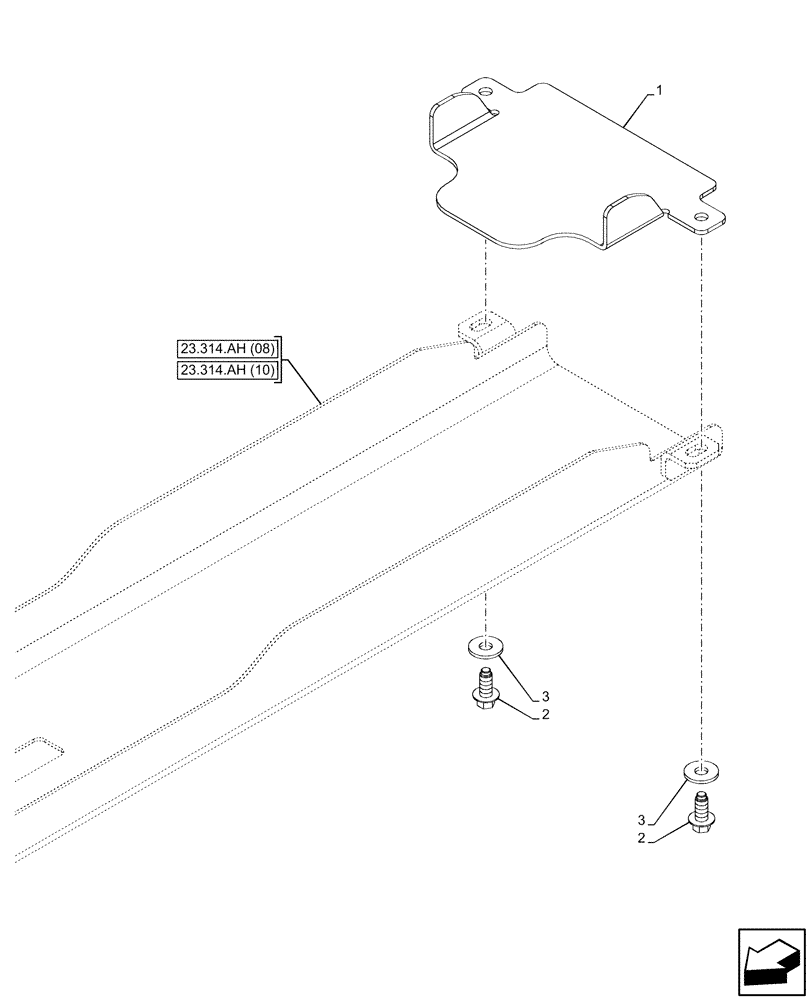

Схема запчастей Case IH PUMA 185 - (23.314.AH[07]) - VAR - 337416, 758048, 758049 - 4WD FRONT AXLE, DRIVE SHAFT, GUARD, COVER (23) - FOUR WHEEL DRIVE SYSTEM
23.314.ah (08)
1
3
3
2
2
23.314.ah (10)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82037903

GUARD

1шт.

2

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

2шт.

3

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

2шт.

Выбрано товаров: 3
