Запчасти Case IH PUMA 185 (23.202.AP[04]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 391137, 758017, 758018, 758019, 758020, 758021, 759052 - 4WD ENGAGEMENT CLUTCH CONTROL, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM

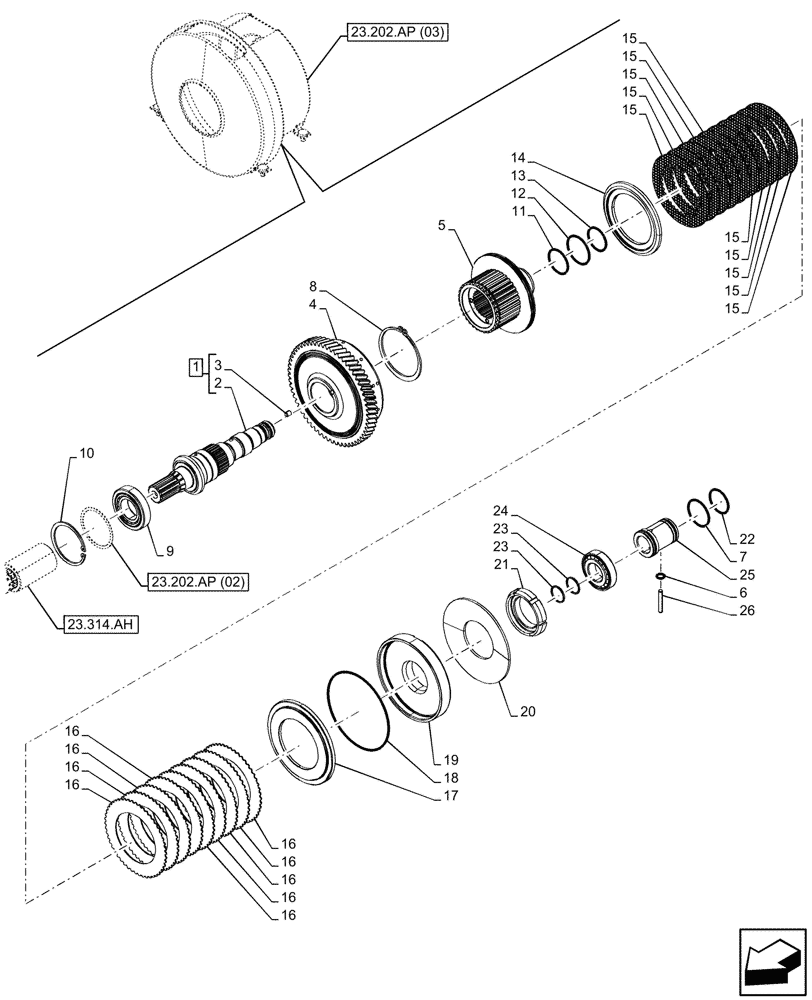

Схема запчастей Case IH PUMA 185 - (23.202.AP[04]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 391137, 758017, 758018, 758019, 758020, 758021, 759052 - 4WD ENGAGEMENT CLUTCH CONTROL, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM
23.202.ap (02)
4
15
1
15
16
16
18
16
23
16
15
17
26
15
15
25
7
16
13
24
16
23
6
2
16
10
22
16
5
15
8
15
9
3
20
19
21
15
15
14
15
16
11
12
23.314.ah
23.202.ap (03)

Артикул

Название

Примечание

Количество

1

5195111

SHAFT

283mm, ASSY, Incl 2, 3

1шт.

2

5195108

SHAFT

1шт.

3

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

4

84166035

DRIVEN GEAR

Z 60

1шт.

5

5195122

HUB

1шт.

6

14453080

O-RING,0.426" ID x 0.07"

1шт.

7

14459181

O-RING,45.69mm ID x 2.62" Width

1шт.

8

5139462

SNAP RING,3mm Thk

1шт.

9

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

12

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

13

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

14

47126552

CLUTCH PLATE

1шт.

15

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

10шт.

16

5143721

CLUTCH DRIVING PLATE,50T, 152.6mm OD

9шт.

17

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

18

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

19

5193859

PISTON

1шт.

20

9845126

BELLEVILLE WASHER,71.5mm ID x 157mm OD x 4mm Thk

1шт.

21

5193860

NUT,Rd, M58,1.5mm Pitch

1шт.

22

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

23

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

24

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

25

5195345

MANIFOLD

1шт.

26

14516210

DOWEL,M7 x 45

1шт.

Выбрано товаров: 26
