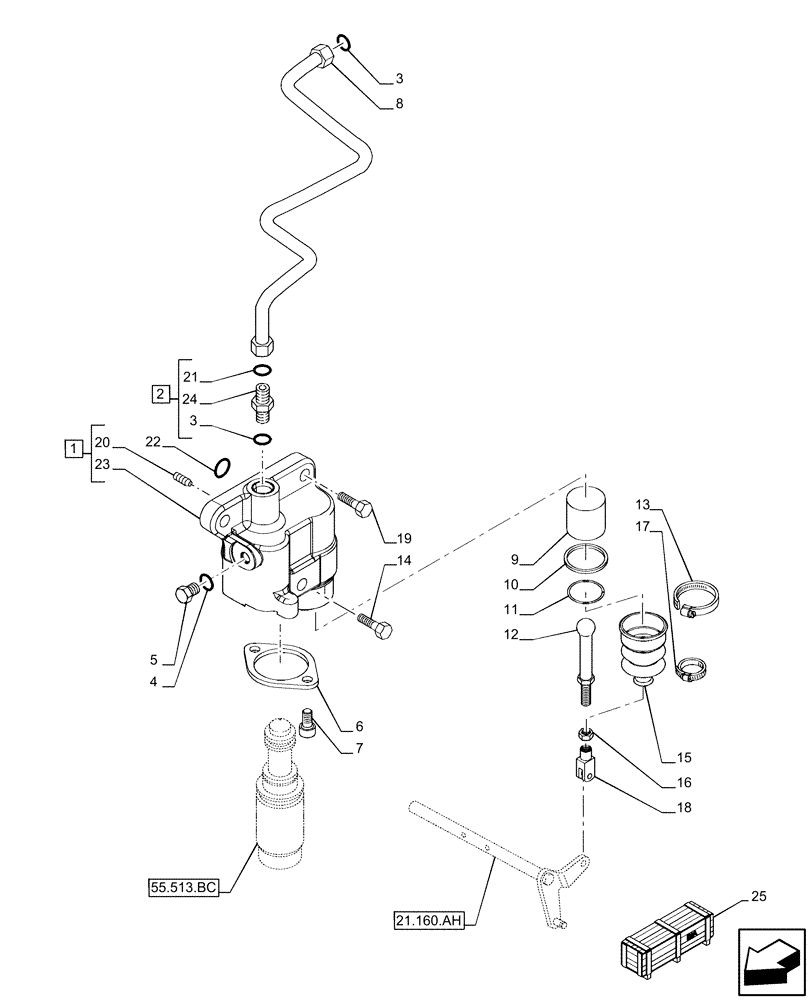

Запчасти Case IH PUMA 185 (21.160.AP) - VAR - 337426, 337428, 337430, 337432, 338397, 758017, 758019, 758021, 758867 - CREEPER, CONTROL VALVE (21) - TRANSMISSION

1

87561401

BODY

ASSY, Incl 20, 23

1шт.

2

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16 x 1.5, ASSY, Incl 3, 21, 24

1шт.

3

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

4

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

5

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

6

5194826

BRACKET

1шт.

7

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

8

87316337

TUBE

To Creeper

1шт.

9

5188325

PISTON

1шт.

10

5188311

SEAL,29.96mm ID x 36.86mm OD x 4.8mm Thk

Ring

1шт.

11

13421376

SNAP RING,M30, Int

D=40

1шт.

12

5188324

ROD,M8

1шт.

13

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

D=40-60

1шт.

14

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

1шт.

15

4999009

BOOT

1шт.

16

16102324

THIN NUT,Thin, M8 x 1.25, Cl 05

1шт.

17

10187090

HOSE CLAMP,16mm - 18mm

D=16-18

1шт.

18

10007871

YOKE,8mm ID Pin Hole, M8 x 42mm L

1шт.

19

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

20

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

21

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

22

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

23

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

25

710146074

DIA KIT, TRACTOR

Creeper for Full Powershift Transmission, Incl 1 - 24

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
