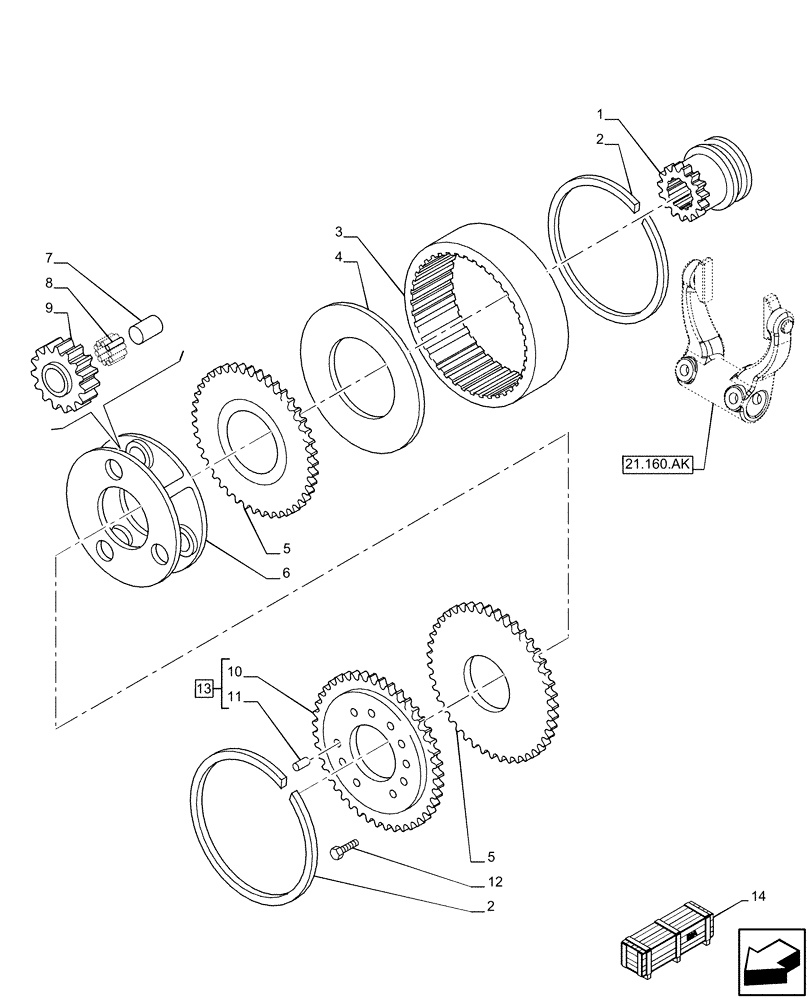

Запчасти Case IH PUMA 185 (21.160.AL) - VAR - 337428, 337430, 337432, 758017, 758019, 758021 - CREEPER, GEAR (21) - TRANSMISSION

1

5153484

GEAR,18T, 24T

1шт.

2

5146472

CIRCLIP,3mm Thk

2шт.

3

5146473

RING GEAR,100T, 63mm L

1шт.

4

5146477

DISC,100mm ID x 193mm OD x 5mm Thk

1шт.

5

5146478

RING,100T, 1.5mm Thk

2шт.

6

5153507

CARRIER,Planetary

1шт.

7

5132286

PIN,19.24mm OD x 35.4mm L

3шт.

8

5132285

ROLLER BEARING,19.24mm ID x 27.24mm OD x 21.8mm W

3шт.

9

5146474

GEAR,39T

3шт.

10

5164774

DISC,86mm ID x 200mm OD x 15mm Thk

Driven Gear

1шт.

11

10799310

DOWEL,10mm OD x 15mm L

2шт.

12

14233424

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

13

5164775

DRIVEN GEAR,100T

ASSY, Incl 10, 11

1шт.

14

710146074

DIA KIT, TRACTOR

Creeper for Full Powershift Transmission, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
